Formax FD380 tabletop document folder with cabinet

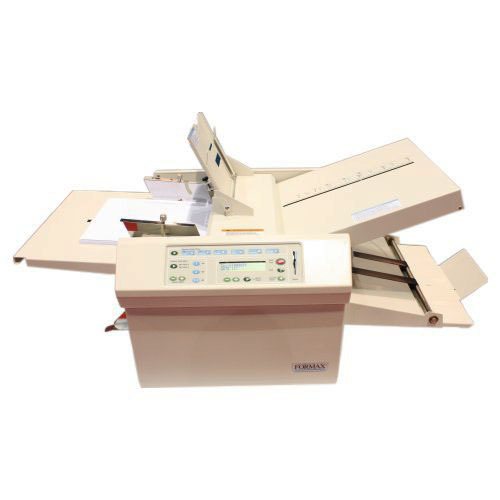

Formax FD380 Tabletop Document Folder with Cabinet
Formax FD380 Automatic Document Folder with Cabinet (FD2000)
The fully automatic FD 380 Document Folder is the ideal folding solution for any church, school or business which demands quick and easy setup. Six common folds are pre-set for 11", 14" and 17" (International Sizes A3, B4, A4, B5, A5 and B6) paper and can be activated with the touch of a button. Additionally, up to nine custom folds can be programmed and stored in memory. All the settings are easily made with the centrally located control panel and LED.
The FD 380 is capable of processing paper up to 17"(432mm) in length and up to 12.25"(311mm) in width giving it the flexibility to process a variety of paper sizes. The ability to customize jobs allows operators to fold in virtually any configuration that only requires two folds. Cross folding adds to the FD 380 s flexibility allowing for additional folds in a second pass. The unique semi-automatic Dedicated Multi-Sheet Feeder is designed with an independent skew adjuster, side guide adjuster and paper sensor allowing operators to accurately fold stapled and unstapled sets of precollated documents with up to three 20lb 75gsm) sheets.
Self centering side guides and a skew adjuster ensure that paper is loaded and feeds squarely into the folder. Fine tuning knobs on the fold plates allow operators to precisely set the fold positions. Pre-programmed folds, automatic fold adjustments, and a centrally located control panel make for easy setup and operation. The Telescoping Outfeed Stacker, with an unprecedented stacking capacity of up to 500 folded documents, cuts down on unloading time and ensures that the forms remain in a neat and sequential order. The unique AutoBatch or automatic batch" allows operators to batch count with automated features. In the AutoBatch mode, operators can program the number of sheets to be processed in a set, the number of sets needed and the delay between each set.
* Pre-programmed for 6 popular folds: Letter, Zig-Zag, Single, Gate, Fold Out and Double Parallel folds in 11", 14" and 17" (International Sizes A3, B4, A4, B5, A5 and B6)
* Telescoping Outfeed Stacker: Holds up to 500 folded documents and keeps them in a neat and sequential order
* Dedicated Multi-Sheet Feeder: Designed with an independent skew adjuster, side guides and paper sensor, operators can fold up to 3 stapled or unstapled sheets of paper at the same time
* AutoBatch: Processes a pre-determined number of sheets into sets with a delay between sets
* Manual Batch Counter: Processes a pre-determined number of forms
* 6-Digit Resettable Counter: Provides maximum audit control
* Custom Fold Memory: Set and store up to 9 custom jobs for automatic setup
* Drop-In Feed System: A drop-in three roller feed system produces dependable feeding of forms with no paper fanning required
* Cross-Folding: A guide is included for maximum performance
* Variable Speed Control: Up to 12,500 pieces per hour
* Noise Reduction: Fold plates are insulated to reduce operating noise
* Fine Tune Adjustment: Precisely sets fold stops for crisp, accurate folds
* Hopper Capacity: Up to 500 Sheets 20lb (75gsm)
* Variable Speed: Up to 12,500 sheets per hour - based on 11"(279mm) Z" fold
* Min Paper Size: 3.5 W x 5" L (88.9 W x 127 L mm)
* Max Paper Size: 12.25 W x 17" L (311 W x 432 L mm)
* Dimensions: Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)
