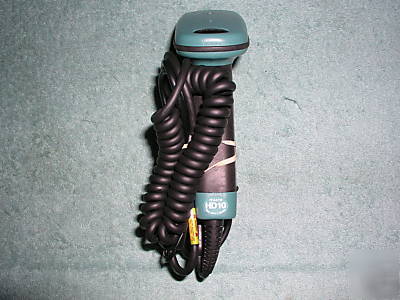

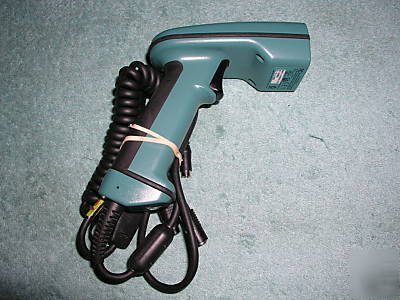

New hand held products 4410HD10 hand held image reader
* Omni-Directional Scanning - The video technology basis for the IT4410 means it can offer omni-directional scanning, even on linear codes, greatly simplifying operator training and increasing productivity.
* Aiming - The IT4410 has a bright, intuitive aiming line.
* It Autodiscriminates Between Supported Symbologies and Fonts - Reads all major linear, stacked linear, and matrix bar codes, as well as machine readable fonts used in Optical Character Recognition (OCR).
* HD10 Focal Point: 3 inches from nose
* 10 mil QR (typical 0.025 cm), Near = 2.0 in. (5.1 cm), Far = 4.0 in. (10.2 cm)
* 10 mil Data Matrix (typical 0.025 cm), Near = 2.2 in. (5.6 cm), Far = 3.8 in. (9.6 cm)
* 5 mil Linear (typical 0.013 cm), Near = 2.75 in. (7.0 cm), Far = 3.75 in. (9.5 cm)
* Rotational Sensitivity: 360 Degrees
* Viewing Angle: +-45 Degrees
* Ambient Light: Total darkness to 100,000 lux (full sunlight)
* Aiming: 660nm LEDs provide bright aiming line
* 2 Dimensional: MaxiCode, PDF417, MicroPDF417, Aztec, Aztec Mesa, Data Matrix, QR Code, Code 49, UCC Composite, Snowflake*, Vericode*, Dataglyphs* (* Available to licensed users only)
* Linear: Code 39, Code 128, Codabar, UPC, EAN, I 2 of 5, RSS, BC 412*, Code 93, Codablock
* Postal: Postnet (US), BPO4 State, Canadian 4 State, Japanese Post, KIX (Dutch Post), Planet Code
* Interface: PS2 Keyboard Wedge
* Programmable Options: Baud, Parity, Data Formatting, Code Options
* Power Requirements: 4 to 9 volts
* Current Draw: Lower Power Mode - average @ 5 VDC-40mA, Medium Power Mode - average @ 5 VDC-125mA, High Power Mode - average @ 5 VDC-175mA

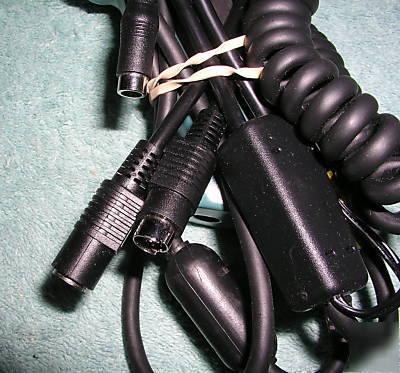

These came in a lot of new spare parts as sown, so they may have a couple tiny light cosmetic marks on the body but they are otherwise spotless. These did NOT come with the power supply so it is NOT included. These sell for $985!
