New port tsx-1D series dovetail linear stage

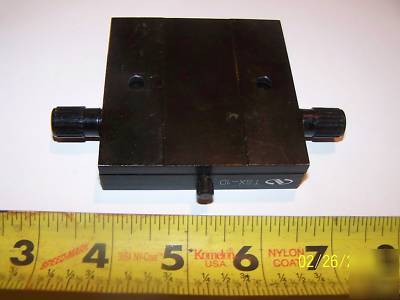

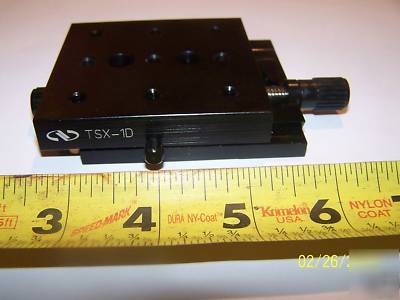

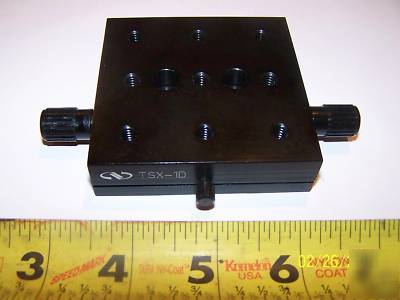

What we have here are some NEWPORT TSX-1D dovetail Linear Stage
I have included some information from there web page however if you have any other questions please feel free to ask.
TSX-1D Series Dovetail Linear Stages
* Unique preloaded dovetail slide design
TSX-1D Series Dovetail Stage offers rapid linear positioning for a variety of applications. Smooth travel is obtained with a precision dovetail slide, preloaded to provide the stability required for laboratory applications. The stage features your choice of English (1/4-20) or metric (M6) threaded mounting holes.
TSX-1D has a precision lead screw drive for coarse/fine positioning. The stage can be securely locked in place by accessing the side-mounted set screw.
The stage has two knobs for adjustment from either side, is stackable for X-Y positioning, and can be mounted to provide vertical positioning as well. TSX-1D mounts directly to tables and breadboards. Mounted on a rail, the stage provides transverse positioning.
Maximum Stage Travel [in. (mm)]
Load Capacity, Vertical [lb (N)]
