Diagnostic DI2200 real-time portable fft analyzer
Used but good condition Di-2200 real time FFT Analyser
came from a recent company closure

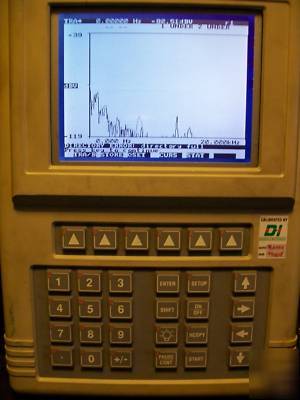

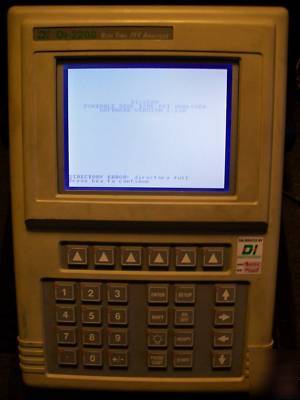

starts and seems to function-screens and buttons work-displays graphs in different formats

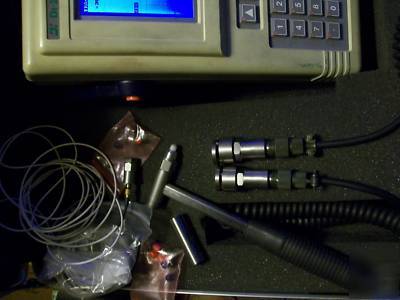

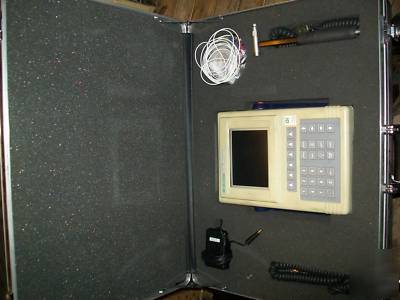

comes with accesories in photo mm8 magnetic mounts x2 and one hammer sensor
if you would like me to carry out any tests e-mail me and i wil give it a go.
video of item available to veiw-please see http:// /watch?v=zx3kkoAwUEk
battery pack needs replaced -series of c-cell type batteries taped together-doesn't hold a charge for long
Range : 10 mV to 10 V in 10 steps
Coupling : AC, DC, IEPE Accelerometer with 15 V, 4 mA supplies
Base band Frequency : DC - 25 kHz to DC - 40 kHz in 10 ranges
Zoom Analysis : up to x 80 in 1 : 2 : 5 sequence
Maximum Sample Rate : 102.4 kHz
Real Time Bandwidth : 20 kHz max, single channel and 10 kHz max, dual channel
Resolution : 100 : 200 : 400 : 800 : 1600 line spectra
Windowing : Rectangular, Hanning, Flat top, Force and Exponential
Averaging Process : up to 4096 Linear, Exponential, Peak
Amplitude Accuracy : 0.5 dB typical
Time Domain : Ch1 : Ch2 : Ch1-Ch2 : Both
Octave 1/1 and 1/3 synthesized
Spectrum and Octave Calibration
Modes : Normal : Free run : Single shot
Level : Variable with resolution of 1 part in 200, + or - slope. Ch1, Ch2 relative delay
Trigger Point : Pre and post trigger, set by number of points before and after trigger point
Trigger Source : Internal or external +5 V TTL
Sample Clock Source : Internal or external +5 V TTL or generated internally via phase locked loop from external trigger
Formats : Single trace : Dual trace : Waterfall up to 99 traces : Orbit
Type : High contrast LCD. Alphanumeric/graphic with back light
Cursors : Single X and Y readout : Harmonic up to 200 : Side band : Peak search
Scaling : Manual. Automatic calculation of engineering units, EUs
EU Display Formats : G : m/sec : m(Metric). G : in/sec : mils (English). User defined
Data Storage Record and Setup Storage capability to
Memory Card : Up to 2 Mbyte removable memory
Internal SRAM : Internal 512 Kbytes non volatile. Static RAM
Typical capacity of internal memory is 200 (200 line) spectra
RS-232C : File transfer to host computer. Variable baud rate to 38400
Memory Card : Data storage capability. JEIDA / PCMCIA standard
Battery Type : Ni cd rechargeable battery. Charger/Mains power adaptor is supplied
Time between charge : 6 hours continuous running, typical
Memory back up : Lithium cell up to 10 years
Size : 313 mm x 215 mm x 93 mm approx
Operating Temperature : 0 C to 50 C
