Heathway rock and roll furnace, inconel tube, 3.845" di

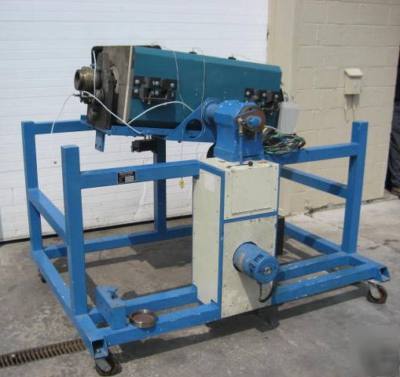

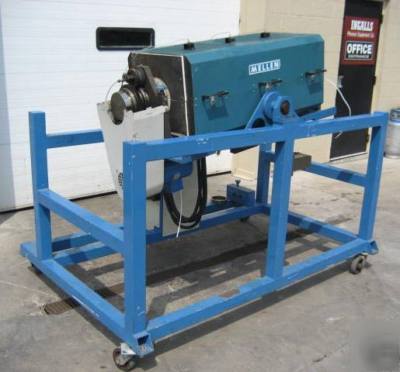

* one(1) used Heathway Tube Furnace/Calciner
* Model HMD-380-AI, Serial number 33153
* Inconel tube, 3.84" (9.75cm) diameter, 62" long
* Rated for 1000 degrees C (1832 F).
* Indirect electrically heated, 3 zones.

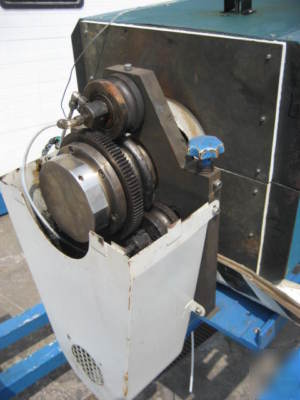

* Tube oscillates back and forth with a .25kw DC motor
* Tube rotates with a .37 kw DC motor, approx. 320 tube rpm
* Neither motor has DC Controller, no controls for furnace either.
* Unit is on a steel base with casters.
* Tube has threaded removable end caps to allow for batch operation.
* Tube also rotates 90 degrees for quick removal of product, vertically.
* Hinged Clam Shell type refractory lined cover.
* Allows for easy removal of tube.
