30" x 3HP spdl clausing-kondia fv-1 w/prototrak plus cn
30" X 3HP Spdl Clausing-Kondia FV-1 w/Prototrak Plus CN
30" X Axis 3HP Spindle Clausing-Kondia FV-1 w/Prototrak Plus CNC VERTICAL MILL, Proto-Trak Plus 2- A

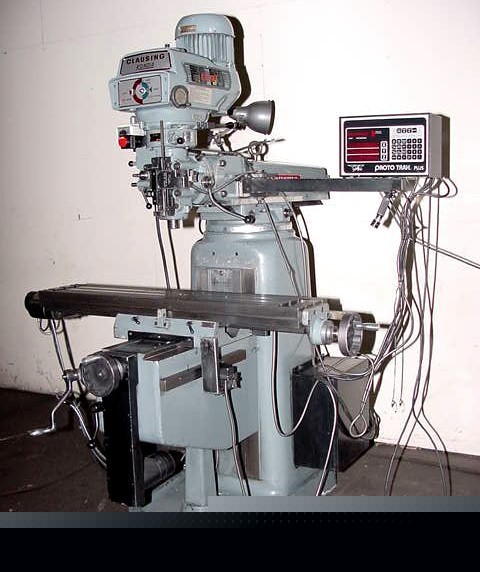

CLAUSING-KONDIA 2-AXIS CNC VERTICAL MILL
MODEL: FV-1 W/PROTO-TRAK PLUS CONTROL
w/HAND WHEELS AND 3 AXIS DIGITAL READOUTS
WORKING SURFACE OF TABLE ................. 9" x 48"
LONGITUDINAL TABLE TRAVEL ................ 30"
CROSS TABLE TRAVEL ....................... 15"
KNEE TRAVEL .............................. 16-1/2"
SPINDLE TAPER ............................ R-8
VARIABLE SPINDLE SPEEDS .................. 60 TO 4000 RPM
SPINDLE FEEDS(3) ................... .0015, .003, .006" IPR
FLOOR SPACE: ............................. 72" x 72" x 82"
WEIGHT APPROXIMATELY: .................... 2,400 LBS.
EZ-TRAK PLUS 2-AXIS CNC CONTROL (MADE BY SOUTHWESTERN IND.)
WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS
LINEAR & CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,
CONTROL BOX WAS SWAPPED OUT BY SOUTHWEST INDUSTRIES IN 2006
IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT
GROUND BALLSCREWS ON TABLE & SADDLE
2 HP (3 HP 30 MIN DUTY) MAIN MOTOR
Watch video at: http:// /watch?v=F95UAq_I8DQ
EXCELLENT CONDITION - ORIGINAL PAINT!
