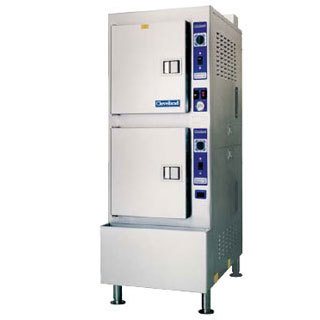

Cleveland 24CDP10 pressureless convection steamer, dire
Pressureless Convection Steamer, Direct Steam Electro-Mechanical, 2 Compartments, 5 Pans per Compartment, SteamCraft Ultra 10
Steamcraft Ultra 10 D, Pressureless Steamer, Direct Steam, 2 compartments, (5)12x20x2 1/2 pans/compartment, electro-mechanical 60 min. timers, s/s construction, 6" s/s legs, 20-50 PSI incoming steam pressure, requires CLEAN steam
* SteamCraft Ultra 10 D Pressureless Convection Steamer
* Two compartment floor model design
* Direct Steam, 24" wide design
* Cooking Capacity for up to ten 12" x 20" x 2 1/2" deep Cafeteria Pans.
* Durable 14 Gauge Stainless Steel Construction: For compartment door, cavity and front.
* One 60 Minute Electro-Mechanical Timer and Switch for manual operation. Audible signal for cooking time completion.
* Separate Switch for Power "on/off."
* Exclusive Steam Cooking Distribution System: Exclusive Brass Steam Jets produce a high velocity convection steam without fans. Coved Corner design in cooking compartment distributes heat evenly, and is easy to keep clean. Creased top & bottom enhance drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks.
* Exclusive "Cool to the Touch" Compartment Door Design: Free floating inner door with reversible door gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability.
* Condensate Drip Trough: Provided under lower compartment door to collect condensate.
* Left Hand Door Hinging: Compartment Doors hinged left, control on the right.
* Moisture Separator for incoming steam.
* Pressure reducing Valve or 20-50 psi steam supply pressure, based on a 3D4" line size.
* Single Cold water Connection.
* NSF Certified 6" Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment.
* Standard voltage for controls: 115 volts, 60 Hz. single phase.
* Clean non-toxic, uncontaminated steam is required for all "Direct Steam" steamers.
