Fluoresent 4' commerical light fixture

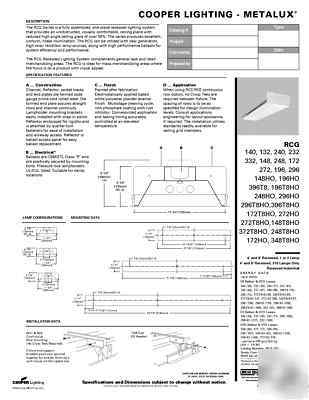

The RCG Series is a fully assembled, one-piece recessed lighting system that provides an unobstructed, visually comfortable, ceiling plane with reduced high angle ceiling glare of over 50%. The series produces excellent, uniform, linear illumination. The RCG can be utilized with new generation, high color rendition lamp sources, along with high performance ballasts for system efficiency and performance. The RCG Recessed Lighting System complements general task and retail merchandising areas. The RCG is ideal for mass merchandising areas where the focus is on a product with visual appeal.
A ... Construction Channel, Reflector, socket tracks and end plates die formed code gauge prime cold rolled steel. Die formed end plate assures straight rows and channel continuity. Lampholder mounting brackets easily installed with snap-in action. Reflector embossed for rigidity and is attached by quarter-turn fasteners for ease of installation and wireway access. Reflector is ballast access panel for easy ballast replacement.
B ... Electrical* Ballasts are CBM/ETL Class "P" and are positively secured by mounting bolts. Pressure lock lampholders. UL/CUL listed. Suitable for damp locations.
C ... Finish Painted after fabrication. Electrostatically applied baked white polyester powder enamel finish. Multistage cleaning cycle, iron phosphate coating with rust inhibitor. Conveyorized application and baking timing accurately controlled at an elevated temperature.
D ... Application When using RCC/RCE continuous row option, no Cross Tees are required between fixture. The spacing of rows is to be as specified for design illumination levels. Consult applications engineering for layout assistance, if required. The installation utilizes standards readily available for ceiling grid members.
