Orion 520A+ advanced ph temperature benchtop meter

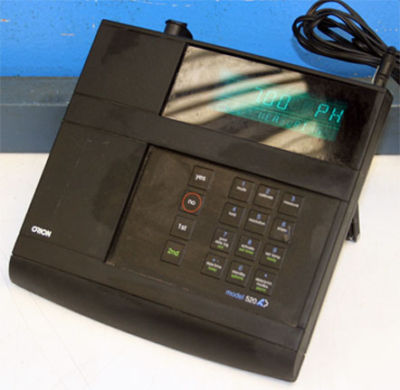

Orion 520A+ Advanced pH/mV/ORP/Temperature Benchtop Meter
The Model 520A is loaded with advanced pH measurement features. It offers selectable ROSS Resolution(tm) to 0.001 pH units, choice of a three point auto-calibration (built-in Auto-Buffer Recognition of 5 buffers) or manual calibration, easy to understand user-prompting and RS232 interface for connection to optional Orion Model 900A Printer or your computer.
* Advanced User-Prompting for Ease of Measurement
* Bi-directional RS232 Communications
* pH Range: -2.000 to 19.999
* pH Resolution: 0.001/0.01/0.1 pH
* pH Relative Accuracy: +/- 0.002
* pH Auto-Buffer Recognition: 1.68, 4.01, 7.00, 10.01, 12.46
* Temperature Range: -5.0 Celsius to 105 Celsius
* Temperature Resolution: 0.1 Celsius
* Temperature Relative Accuracy: +/- 1.0 Celsius
* Millivolts Range: +/-1600.0 (0.1) mV
* Millivolts Resolution: 0.1 mV
* Millivolts Relative Accuracy: +/- 0.2 mV or +/- 0.05% of reading, whichever is greater
* Relative Millivolts Range: -/+1999.9 mV
* Relative Millivolts Resolution: 0.1 mV
* Relative Millivolts Relative Accuracy: +/- 0.2 mV or +/- 0.05% of reading, whichever is greater
* Inputs: One BNC, One Pin Tip, ATC, Power, RS232
* Outputs: RS232, Recorder, Karl Fischer
* Meter Dimensions: 9.1 W x 7.6 L x 2.0 D
