Tektronix 475 oscilloscope 200 mhz *ac/dc operation*
In addition to standard 110 VAC operation, this scope will operate on 12 or 24 VDC and includes a DC input cable with cigarette lighter plug.
The 475 is the modernized, high frequency, and upgraded version of the famous 465, the most successful oscilloscope ever manufactured by Tektronix.
The Tektronix 475 was the industry standard in 200MHz portable oscilloscopes for many years.

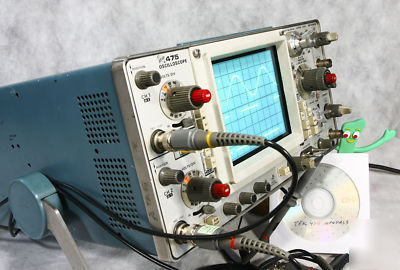

Included are 2 new "1X-10X" probes with a complete set of tip accessories.
Also included is a complete Operators/Maintenance manual on CD as high definition PDF files suitable for print-out.
This scope has had an easy life and operates just as it did when new with a bright, sharp trace.
All controls operate normally and calibration is within specifications.

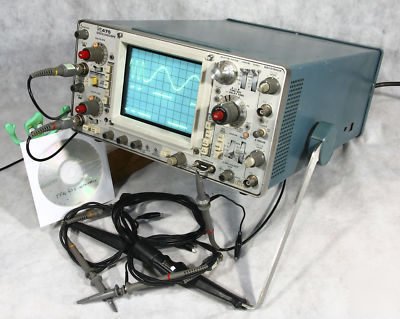

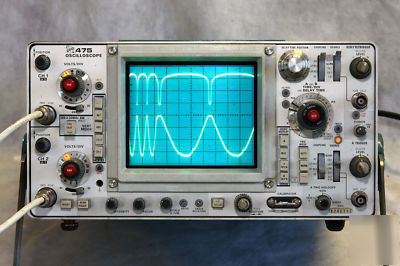

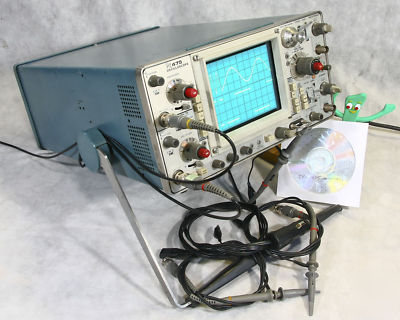

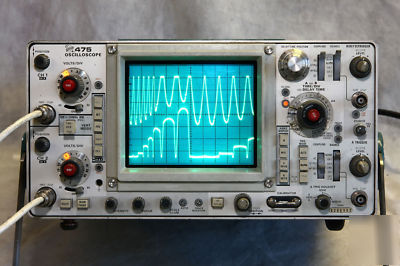

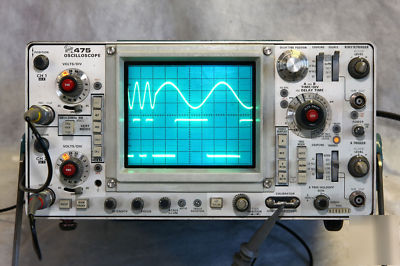

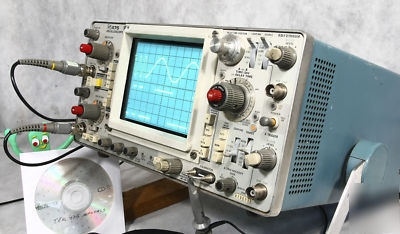

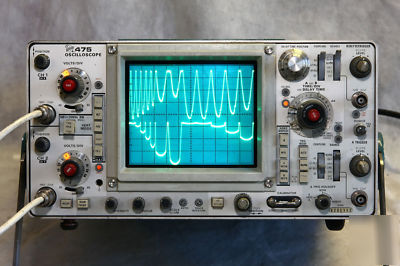

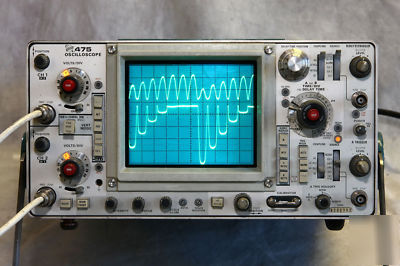

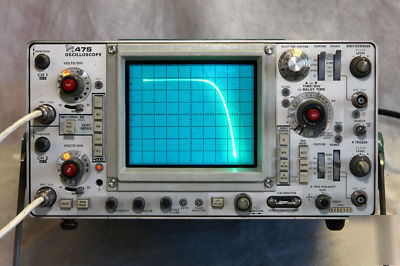

Photos show it's overall excellent condition as well as it's operation with dual traces, complex wave forms, dual time base, and operation in "X-Y" mode

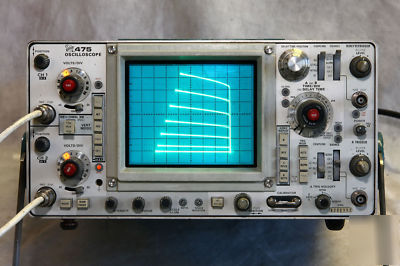

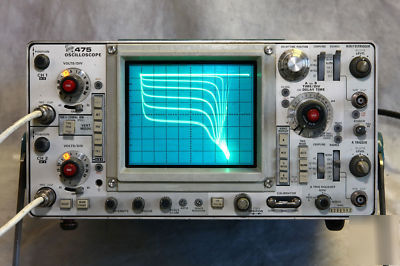

with a curve tracer for testing bipolar transistors, FETs, diodes, capacitors, resistors, and many other components.
As photos show, this scope is in excellent operating condition with all functions performing correctly and is guaranteed NOT DOA.
For more information on the Tektronix 475 and 475A oscilloscopes, please visit:
This 475 is a commercial grade instrument and ready to go to work for you.
Channel-Channel Isolation 100 dB Min.
Vertical Sensitivity 2 mV/div
Maximum Vertical Sensitivity 50 V/div
Vertical(or Deflection Factor) Accuracy 3 %
Maximum Input Voltage 250 V(dc+p)
Main time base - lowest 10 ns/div
Main time base - highest .5 s/div
B Sweep Time Base (low) 10 ns/div
B Sweep Time Base (high) .5 s/div
Time base Magnification factor (X10)
Trigger Source External, Internal
