12" x 24" nicco precision 3 axis auto surface grinder

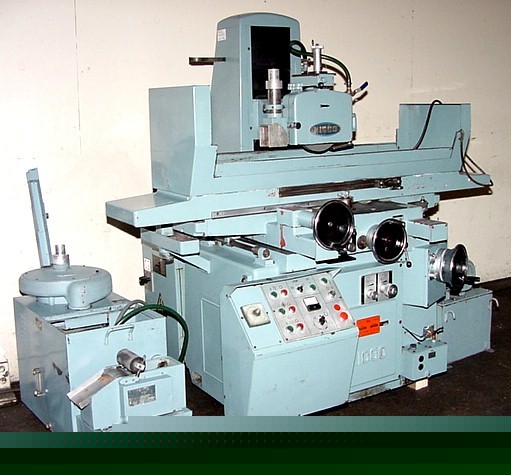

12" X 24" NICCO PRECISION 3 AXIS AUTO SURFACE GRINDER
12" X 24" NICCO PRECISION (JAPANESE BUILT) SURFACE
GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: NSG-6H S/N: 13806 NEW: 1984
WIDTH & LENGTH GROUND................. 12" X 24"
LONGITUDINAL TABLE TRAVEL............. 27"
CROSSFEED TRAVEL...................... 13"
DISTANCE, SPINDLE CENTER TO TABLE
TOP (MAX.) .......................... 20"
MAX. VERTICAL TRAVEL OF SPINDLE ...... 16"
LONGITUDINAL TABLE SPEEDS............. 3' TO 82' FPM
REVERSAL............................. 0.12" TO 0.8"
CONTINUOUS CROSSFEED SPEEDS........... 6.6' TO 16' FPM
MANUAL CROSSFEED PER DIVISION ON
HANDWHEEL............................ 0.0005"
GRINDING WHEEL SIZE .................. 12" X 1.5" X 3"
RAPID TRAVERSE RATE................... 14" IPM
MANUAL VERTICAL FEED PER DIVISION
ON HANDWHEEL......................... 0.0001"
RANGE................................ 0.0001" TO .0016"
APPROX. MACHINE WEIGHT................ 4,800 LBS.
MACHINE DIMENSIONS ................... 81" X 60" X 74"
AUTOMATIC INCREMENTAL DOWNFEED FOR PLUNGE & SURFACE
GRINDING WITH "DEEP CUTTING" (1 TO 30 PASSES) FEATURE
- DOWNFEED WILL ALLOW MORE THAN ONE PASS & UP TO 30 OF
THE DOWNFEED HANDWHEEL (ONE REV. OF HANDWHEEL IS .04")
SPARKOUT CONTROL (1 TO 30 PASSES)
TABLE PARKS TO THE SIDE @ COMPLETION OF GRIND CYCLE
11- 5/8" x 23- 5/8" ELECTRO-MAGNETIC CHUCK
AUTOMATIC LUBRICATION FOR WAYS & SCREWS
COMBINATION COOLANT SYSTEM w/MAGNETIC SEPERATOR
ALL (3) HANDWHEELS LOCATED AT OPERATOR'S HIP LEVEL
FINE DOWNFEED BY RATCHET MECHANISM (.0001" GRAD.)
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS
* EXCEPTIONAL CONDITION & APPEARANCE **
