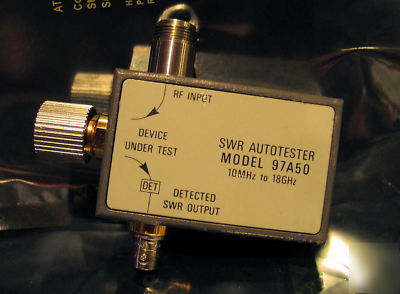

Anritsu wiltron swr autotester 97A50 10MHZ to 18GHZ
The 97 Series SWR Autotesters integrate a high directivity bridge, a detector, a low reflection test port, and a precision reference termination. The 97 Series units are broadband microwave measurement components that are used with the Model 56100A Scalar Network Analyzer and with Series 54100A Scalar Measurement System for making fixed-frequency and swept-frequency return loss (SWR) measurements. Return loss measurements are used over a wide range of radio and microwave frequencies to check the performance of systems, subsystems, and microwave components such as amplifiers, directional couplers, attenuators, filters, splitters, and terminations.
* Test port connect to fit most measurement applications; avoids use of adapters
* APC-7 7MM Device Under Test Connector
* BNC Male Detected SWR Output Connector
* N-Type Male RF Input Connector
