Hp agilent E9340A 34 channel personal logic analyzer

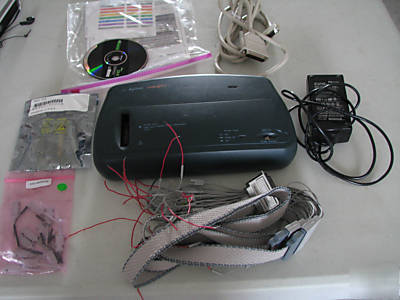

HP Agilent E9340A 34 Channel Personal Logic Analyzer
This was acquired from a college and we were told it's not been used.
1x E9340A SN SG400001384, with 34 ch logic pod
1x HP F1044B power adaptor 100-240V to 12V 3.3A, SN J7207000256T
1x HP C2946A cable to connect this logic analyzer to PC parerell port
2x HP E9340-94302 probe and cable labels
1x 6XX-08298-OA including 11 grabbers and 5 ground lead
Memory depth of 128K samples on each channel in timing mode, 64K in state mode
100 MHz state analysis, 250 MHz timing analysis
The Agilent E9340A LogicWave logic analyzer is easy to use, inexpensive, and powerful. It's the perfect personal tool for digital circuit debugging. LogicWave offers single screen operation with an easy to use graphical interface. This is the perfect tool if you are looking for an easy to use, inexpensive solution to your debugging needs.
A PC-hosted logic analyzer connects to a personal computer that runs the logic analyzer user interface software. You can set up measurements, run them, and display and analyze the captured data on your PC. These tools are designed for personal and portable use.
The datasheet can be found at: http://cp.literature.agilent.com/litweb/pdf/5968-5560E.pdf
