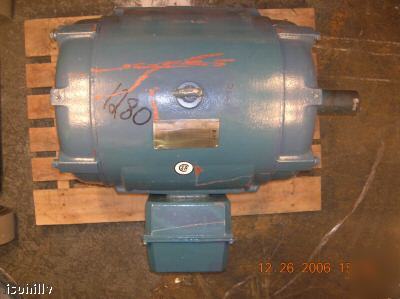

New a. o. smith E936 125 hp electric motor
A. O. Smith E936 125 HP electric motor
A. O. Smith retail price $5,052
Frame - 405T-Time Rating - CONT
HP - 125-Service Factor - 1.15
RPM - 1790 -Ambient (C) - 40.00
Nema Design - B-Power Factor - 85.3
Efficiency - 95.4 -Nema Code Letter - F
Outline Drawing - 18726801-001-Drv. Bearing - 6317
Conn. Diagram - NA-Non-Drv. Bearing - 6313
Performance Characteristics:-Tested Voltage - 575.00
Efficiency (%)- 95.9 - 95.8 - 95.7 - 94.9 - 91.6
Power Factor (%) -84 -83.6 - 82.4 - 76.5 - 56.2
Amps - 133.70- 116.80 - 89.10- 64.50 - 45.30
Speed (RPM) - 1785 - 1787 - 1791 - 1794 - 1797
Full Load Torque (Lb-Ft): 367 - L.R. Torque (% F.L.):149%
L. R. Amps: 679.00 - B.D. Torque (% F.L.):235%
No Load Amps: -36.1 - Temp Rise @ Full Load (C): 40
