Raytek RAYMX6TDCFCRU photographic infrared thermometer
Raytek RAYMX6TDCFCRU Photographic Infrared Thermometer
The RAYMX6TDCFCRU Measures, Photographs & Documents!
Every infrared thermometer can measure temperature, but only the PhotoTemp MX6 thermometer measures temperature while simultaneously digitally photographing the measured area and its surroundings.
The proof is in the picture! Temperature measurement locations are instantly captured in a digital photo with a time and date stamp in the image. The photo shows the precision True Dimension laser sighting with a circle of double bright laser dots, pinpointing the exact measurement location, without the need for a view finder.
Make sure the inspection was done properly. Use the DataTemp MX software to upload the temperature measurements and photos to double-check all work.
Ensure consistency by using prior photos as a reference and the True Dimension laser as a guide to guarentee the next measurement is of the same area.
Create customized company reports with PhotoTemp MX6 thermometer data and photos. Automatically download and insert information from PhotoTemp MX6 data files into reports for fast, professional results.

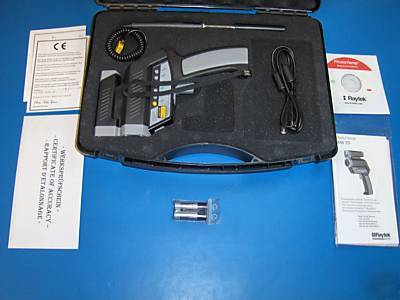

The PhotoTemp MX6 is packed in a hardshell carrying case and includes:User Guide, DataTemp MX software, Thermocouple K probe and USB computer cable.
True Dimension Laser Sighting
True Dimension is a coaxial three-dot laser sighting system indicating the true diameter of a measurement spot (90% energy). The target is highlighted at all distances with a center measurement dot and two accompanying diameter markers. At the focal point, where the measurement spot size is the smallest, the dots line up vertically, rotating as the unit is moved closer to or further from the target. This advanced
coaxial system uses an extra bright* 635nm laser (tested to the same safety and power standards as less
bright laser sights) to clearly highlight the targeted area.
* perceived to be twice as bright as lasers with the same power by the human eye.
Measure objects as small as 6 mm (.24 in) at 300mm (11.4 in)
-30 C to 900 C (-25 F to 1600 F)
(Assumes ambient operating temperature of 23 C (73 F))
or 0.75 C ( 1.5 F) whichever is greater
0.5% of reading or 1 C ( 2 F), whichever is greater
8 to 14 m, thermopile detector
0.1 C of reading up to 900 C (0.2 F up to 999.8 F)
10 to 90% RH non-condensing @ up to 30 C (86 F)
-20 C to 50 C (-25 F to 122 F)
8 hrs (13 hrs with photographic mode off)
50 photos, with flash (200 photos, without flash)
3-dot laser sighting (Meets IEC Class 2 & FDA Class II requirements)
Maximum and Minimum Temperature Displayed
Differential and Average Temperature
Audible/Visible High and Low Alarm
Adjustable Emissivity* (from 0.1 to 1.0 by 0.01)
Data Graphing & Photo Viewing Software (Windows compatible)
Data Output: USB or 1mV per degree ( C or F)
Maximum Number of 640x480 Pixel Photos (VGA)
Maximum Number of 320x240 Pixel Photos (1/4VGA)
6 mm (.24 in) approximately equal to 42 mm lens on a 35mm camera
Close-up Distance Focal Point Far Distance Focal Point
< 1/15 sec (with flash at 1/15 sec fixed)
