20" doosan V5R cnc vertical turning center

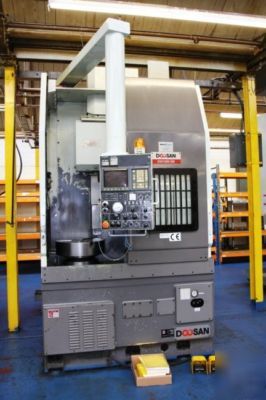

20" Doosan V5R CNC Vertical Turning Center
Item Located in the United Kingdom

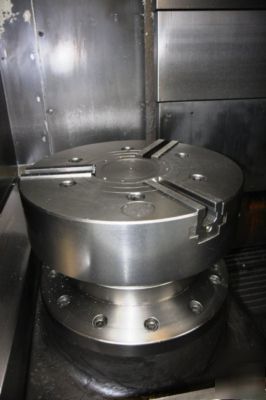

Chuck Diameter ........................ 20.86"
Max. Cutting Diameter ................. 21.65"
Max. Cutting Length ................... 24.01"
Bed Width Across Saddle Slideway ...... 5.51"
Spindle Center Height ................. 41.73"
Spindle Nose .......................... ASA A2-8
Spindle Speeds (Stepless, Direct) ..... 20-2500 RPM
Spindle Motor (AC Drive) .............. 40 HP / 30 HP

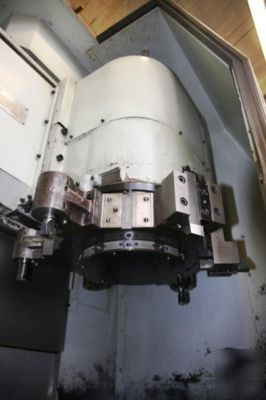

Turret Positions ...................... 12
X-Axis Travel ......................... 12.20"
Z-Axis Travel ......................... 24.01"
Rapid Traverse, X & Z Axes ............ 472 IPM
Floor Space Required .................. 119" x 70"
Machine Height ........................ 130"
Total Weight .......................... 21,560 Lbs.
