Gn nettest photon kenetic PK7500 sm fiber otdr pm vfl

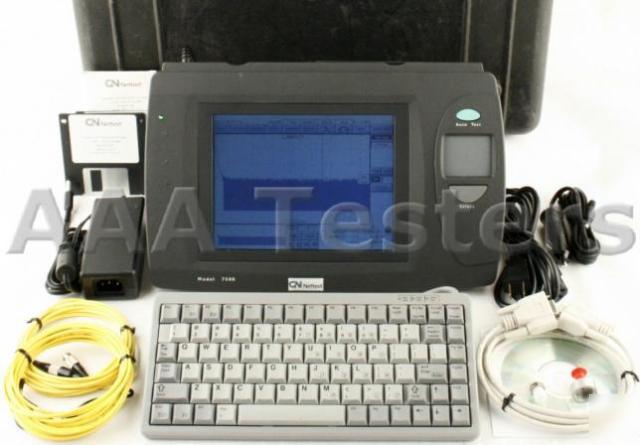

* GN Netetest PK7500 OTDR Mainframe
GN Nettest PK7500 OTDR Mainframe with 742S Singlemode 1310nm/1550nm OTDR Module With Power Meter & VFL
This Unit Is Like New & Has Barely Been Used!
Complete With Full Accessories & Carrying Case!
The Model 7500 Mini-OTDR ( OPTICAL TIME DOMAIN REFECTOMETER ) offers >32dB of Dynamic range, 20 meter attenuation dead zone and 5 meter event dead zone. There is an Auto Test function and information is displayed on a 9.4-inch , VGA, LCD screen.
The Model is ideal for use in telecom , CATV, LAN, and manufacturing applications.
The Model 7500's dynamic range can be used for testing long trunk or interoffice fiber spans. The unit's short dead zone allows closely spaced features to be measured. Configured with the visual fault locator option, the Model 7500 will troubleshoot fiber in splice cabinets/enclosures, giving a virtual "zero" dead zone performance.
The Loss Table automatically calculates the reflectance of mechanical splices as well as the Optical Return Loss (ORL) for the fiber span. The optional OTDR emulation software for your PC allows you to analyze data and generate hard copy documentation in your office.
The Model 7500 offers single-mode and multimode plug-ins that can be used in LAN applictations where there is a need to test different types of fiber cable or composite cable. The Auto Test function allows fast, easy measurements without a skilled operator. Size, weight, and battery operation give the Model 7500 optimum portability. (includes only Single-Mode Module 742s)
The Model 7500's dynamic range and accuracy make it convenient for quick distance measurements on the production floor. Attenuation and lenght of fiber may be obtained quickly by generating a Loss Table.
Acquisition/Distance Range (KM)
0.8 Meters 0.01% of length measured
2pt, LSA (dB/KM), auto or manual splice (dB), reflectance (dB), Power Meter (dB, dBm, Watts), ORL (dB)
9.4" diagonal, backlit, VGA (640 x 480) LCD
Internal RAM, 1.44MB 3-1/2" disk drive option
34.3cm x 24.1cm x 7.6cm (13.5in x 9.5in x 3.0in)
> 6 hours (rechargeable), 180 scans
RS-232C, parallel, keyboard accessory port (data entry)
