House plans, blueprints a-frame vacation home

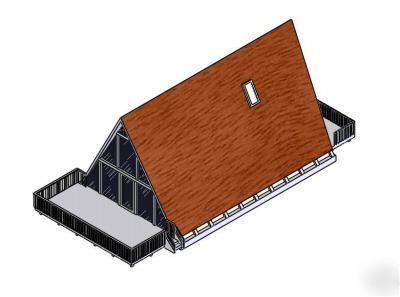

A-FRAME VACATION/RETIREMENT HOUSE PLANS
A perfect vacation or retirement home for year around living designed with simplicity to help reduce cost and promote energy efficiency over conventional homes with the same square footage.
Triangular construction provides stability against wind loads and snow loads. The roof, serving also as the walls, reduces the overall construction costs compared to conventional construction.
Your plans will also include a free Build Green Energy-Saving Checklist containing 70 energy-saving features for contractors and owners to consider before construction.
26'-0 x 42'-0 overall dimensions

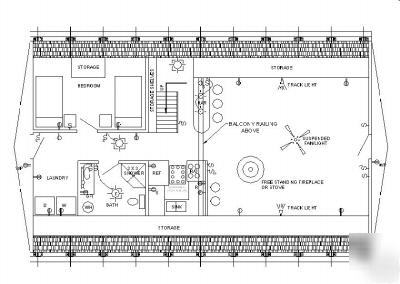

Two bedrooms (one below and one above)
Upper Balcony with planter box
Fire Escape Egress Vented Skylight Windows
Triple Glazed Low -E Front Face Open Windows
Open Cathedral ceiling in living area 18'-6 in height.

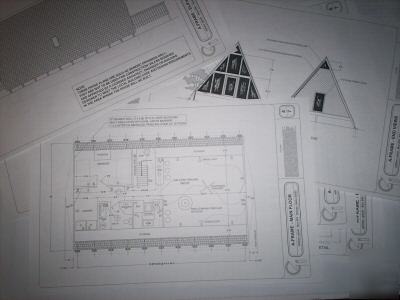

Plan set consist of (7) 11 x 17 drawings, professionally drawn in AutoCAD.
Under Federal Copyright Law these plans cannot be copied and resold to others. You are granted the right to use these plans to construct a single unit.
Make as many copies as required for your building project.
Drawings in the plan set consist of:
Cross-Section Construction View
Order now and receive a free U.S. silver coin minted before 1920.
Email us with your question. ****@engineering.com
