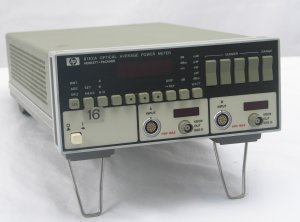

Hp/agilent 8152A 850/1700NM average optical power meter
HP/Agilent 8152A 850/1700nm Average Optical Power Meter Used
Model/Part No:8152A Our Item ID: 2638
Includes: 81520A/21B/22A head not included
Agilent/HP 8152A Optical Power Meter.
The HP 8152A Optical Average Power Meter and its optical heads provide the accuracy and versatility for absolute and relative power measurements in a fiber optic test environment. Applications range from output power measurement of active optical components, to ratio measurement of power splicers
Individually calibrated optical heads ensure highly precise measurement results over the entire wavelength range from 850 to 1700 nm. After entering the operating wavelength, the appropriate sensitivity correction factor will automatically be taken into account to ensure the correct measurement value is displayed.
The combination of 2 independent optical inputs, the capability to perform ratio measurements, plus the new HP 81000BS Optical Power Splitter provides a fast, easy solution to determine the power ratio of an optical splitter or eliminating the instabilities of an optical source.
All functions can be set manually via front panel controls, or programmed via HP-IB for complete remote control. The HP 8152A is therefore an ideal tool for departments such as R&D, production and incoming evaluation.
4 1/2 digits, 0.01dB, 10 pW best case
Traceable Calibration Accuracy
Item Tested?: TestedPhysical Condition: Good; Working Condition: Fully Functional10 | 16x 16x16 | 1
