Millermatic passport plus mig welder w/sg 907401

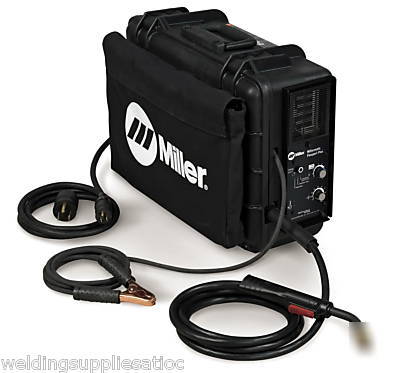

MILLERMATIC PASSPORT PLUS MIG WELDER W/SG 907401
* Power cord and MVP adapter plugs for 115 and 230 V power.
* 10 ft (3 m), M-10 MIG gun and cable assembly #195 605
* 10 ft (3 m) work cable and clamp
* One CO2 gas cylinder (empty)
* Dual-groove, quick-change drive rolls for .024 in (0.6 mm) and .030/.035 in (0.8/0.9 mm) wire
* Two contact tips for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm)wire

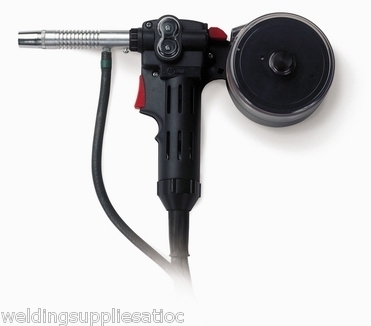

Spoolmate 100 Series Spool Gun
* Portable, lightweight package contains all you need to MIG weld with the flexibility to plug into 115 or 230 V power
* 115 VAC, 110 A at 20% duty cycle or 230 VAC, 150 A at 20% duty cycle
* Spool gun compatible , welds aluminum from 18 gauge to 1/4 inch
CLICK HERE FOR full spec sheets http:// /pdf/spec_sheets/DC12-53.pdf .
You can call me at (***)-854-73801 FROM 5:00AM-7:00PM PT, 7 DAYS A WEEK
MILLERMATIC PASSPORT PLUSRevolutionary all-in-one MIG package that is truly portable - ultimate arc performance, self-contained gas cylinder, and flexibility to plug into 115 or 230 V power.
AUTOLINE POWER MANAGEMENT TECHNOLOGY
Automatically "links" the machine to a broad range of primary single- and three-phase, 50 and 60 Hz input voltages without manually linking. Also compensates for voltage spikes and drops within the entire range. Delivering consistent output - All done without removing the covers to relink.
Fan-On-Demand Internal power source cooling system that only works when needed, keeping internal components cleaner.
Exclusive LVC Line Voltage Compensation
Keeps output of the power source constant regardless of fluctuation in input power + or -10%.
For your safety, our built-in contactor makes wire electrically "cold" when not welding.
The unique MVP power adapter plugs allow you to easily change between 115 and 230 V power. Simply choose the plug that matches your power receptacle, attach it to the power cord and you're ready to weld. The machine will automatically adjust to the proper voltage - no tools, no hassles!
087299 .023/025 CONTACT TIPS PKG OF 10
000067 .030 CONTACT TIPS PKG OF 10
000068 .035 CONTACT TIPS PKF OF 10
000069 .045 CONTACT TIPS PKG OF 10
226190 NOZZLE FOR FLUX CORE WIRE
CS15 FLUX CORE WIRE .030 X 10#
NEW SPOOLMATE 100 IS IN STOCK 300371
High-quality arc characteristics feature positive arc starts without popping and spatter, high-stability low-spatter CO2 welding, and outstanding mixed gas. Arc Control allows you to select between a crisp arc suited for mild steel or a softer arc suited for stainless steel and some mild steel applications.
NEW! The Passport Plus welds aluminum with the use of the Spoolmate 100 Series spool gun. Setup is quick and easy - just plug in the direct connect spool gun, change over to argon gas and select the aluminum mode on the front of the machine. You're now ready to weld up to 1/8 inch aluminum on 115 V power, and 1/4 inch aluminum on 230V power. Requires argon flowmeter with hose for using the spoolgun
Truly innovative portable package for welding in the shop and field... this is the breakthrough in MIG welding you've been waiting for. The suitcase-style, 45lb, all-in-one package carries an 8 inch spool of wire and a gas cylinder!
Self-contained gas cylinder holds 12 oz of CO2 for 25 minutes of constant weld time, or 25 ft of welding on 3/16 in thick material with .030 in mild steel wire. A dual-gas supply switch allows you to select between the internal CO2 gas supply or the bulk supply when you're in the shop or need mixed gases.
Miller's exclusive Auto-Line Technology provides state-of-the-art flexibility, automatically connecting to 115 or 230 VAC, single-phase power.
New! Miller's exclusive Multi-Voltage Plug (MVP) allows you to plug into either 115 or 230 V power. Just choose the plug that fits your receptacle and attach it to the power cord - no tools required!
Impact resistant case provides strength and durability, potecting the internal components and welding wire.
* 230 V operation: 150 A at 21.5 V,
* 230 V operation: 130 A at 20.5 V,
* 115 V operation: 110 A at 19.5 V,
* 90 V operation (CSA): 90 A at 18.5 V, 20% Duty Cycle
