New rheem ruud 47-22827-83 fan control circuit board

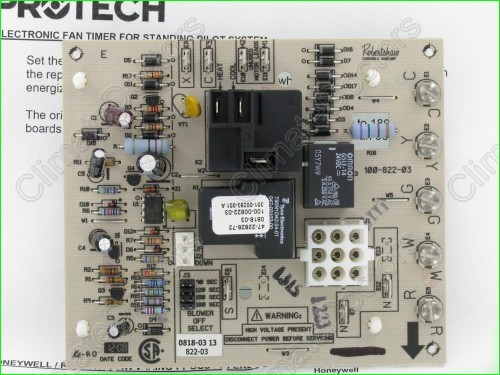

Rheem Ruud 47-22827-83 Fan Control Circuit Board NEW
Rheem Ruud 47-22827-83 Fan Control Circuit Board
Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.
Replaces: 47-22827-02, ST9101A1006, ST9101A1022, ST9101A1006, ST9101A1014, 47-22827-03, 47-22827-83, 47-22693-01, 47-22693-02, 47-22828-01, 47-22830-01, 47-22830-02, ST9101A1014
Heat Fan On Delay fixed, 20 sec.
Heat Fan Off Delay adj. 90, 120, 150, 180 sec (set at 120 sec).
Electrical Ratings (Vac) 24 Vac.
Cool Fan On Delay fixed 0 sec.
Cool Fan Off Delay fixed 0 sec.
Fixed Heat Fan On Delay: 20 sec;
Adjustable Heat Fan Off Delay: 90,120,150,180 (Set At 120 sec);
Fixed Cool Fan On and Off Delay: 0 sec.
Temperature Ratings (F) -40 F to +160 F
Temperature Ratings (C) -40 C to +70 C
