Gilson 223 liquid sample changer and 178258 506C module

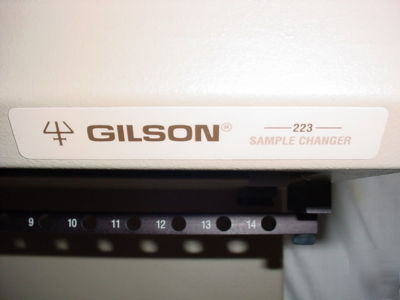

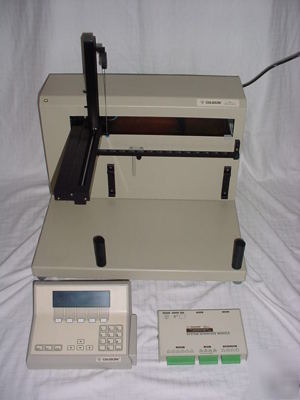

Make me and offer-Gilson Medical 223 Automated Liquid Handler Sample Changer.

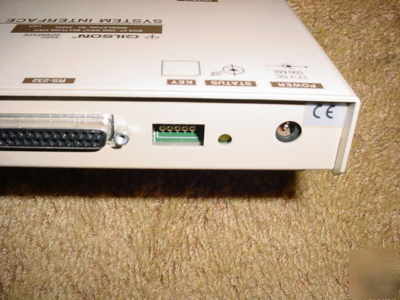

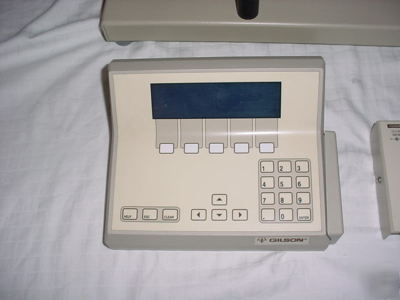

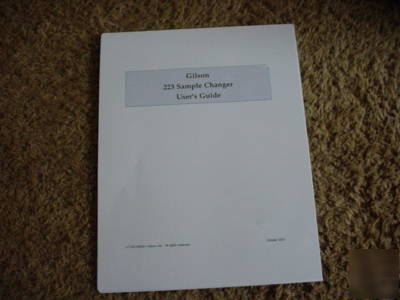

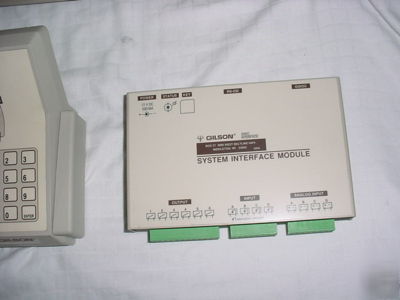

Very nice, very clean. Comes as pictured, no sample trays. Comes with Gilson 178258 Keypad and Gilson 369K7PA436-506C SYSTEM INTERFACE MODULE (no accessory cables), and Gilson 223 Changer 106 page User's Guide, see pictures.
90-120 or 220-240 Volts AC, 50-60 Hz
Used, powers up-arm shows movement, unable to test further
The Gilson 223 programmable sampler is used for automated sample preparation and sample transferring. The 223 Sample Changer is the perfect solution for protocols such as serial dilutions, addition of samples, sampling into vials, timed reactions and tube-to-tube transfers.
* Ideal for automated transfer of samples in analytical techniques like FIA and spectroscopy (UV/Vis, AA, ICP)
* Level-sensing and user-selectable rinsing parameters help eliminate sample contamination due to carryover
* Operate with the Minipuls 3 Pump or the 402 Syringe Pump
* Accommodates a maximum of 432 vials (7 x 40 mm or 10 x 75 mm)
* Choose from a wide variety of probe designs and standard and custom racks
* Optional flow-through rinse station available from Gilson
* Manufacturing Standards: Meets applicable safety and EMC certification standards; UL and CE certified
* Arm Speed: X/Y: 25cm/sec (9.9 in./sec) Z: 2.0, 3.0, 6.2, 12.7, 24.7 cm/sec (0.79, 1.18, 2.44, 5.00, 9.72 in. sec)
* Communication Interface: RS-232 or GSIOC; Four inputs (contact closure, TTL, or open-collector), four relay outputs and one switched +24 Volt DC (500 mA max.) output
* Front Panel: One yellow LED indicator light
* Horizontal Motion Strength: X: 2 kg (5 lbs.) / Y: 1.5 kg (3 lbs.)
* Maximum Number of Vials: 432 (7 x 40 mm or 10 x 75 mm)
* Number of Racks: Up to four Code 20- or 30-Series racks
* Power Requirements: 90-120 or 220-240 Volts AC, 50-60 Hz
* Probe Positioning Performance Accuracy: 1mm in X/Y/Z dimensions
* Probe Positioning Performance Repeatability: 0.25mm in X/Y/Z dimensions
* Probe Rinse: Through a dedicated rinse station for rinsing the inside and outside of the probe
* Sample Type: X/Y/Z with stationary rack design
* Software: Via Gilson TRILUTION Software (Not Included)
* Vertical Punch Strength: 1 kg (2 lbs.)
* Dimensions: 53.5cm W x 43.7cm D x 60*cm H (21.1 in W x 17.2 n. D x 24 * in. H) *Maximum height. Z-arm height is adjustable to accommodate vessel heights between 1 and 150mm (dependent on installed Z-arm.)
