Logimetrics model 925-S125 rf signal generator on sale
LOGIMETRICS MODEL 925-S125 RF SIGNAL GENERATOR ON SALE!!!
7 DAY RETURN FOR REFUND IF NOT

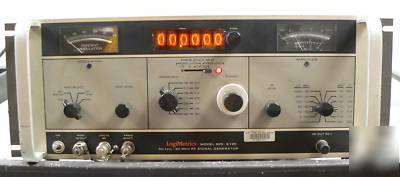

The Model 925/S125 provides unprecedented performance and flexibility at an economical price! The user-friendly front-panel layout make this generator a breeze to operate, even for inexperienced users. Solid-State IC design provides for cooler operation, with greater performance and reliability. Functionally it combines an RF Generator with an ultra stable synchronizer. The Logimetrics 925/S125 RF Generator provides continuously tunable frequency from 50 kHz to 80 MHz in 7 bands, vernier tuning provides ultra fine control to 1 PPM. Output level is from 0.1 V to 3 V rms (-127 dBm to +23 dBm) into 50 , accuracy is better than 1.0 dB within each band and from band to band. Also provides Amplitude Modulation from 0 to 95% on 1 V range and below, with <1% distortion for 30% modulation, internal frequency 400 and 1000 Hz, external frequency is DC to 20 kHz (depending on carrier frequency). Other features include: 6-digit readout of frequency, percent modulation and output level meters, external frequency standard output (1 MHz @ 1 V rms into 1000 ), and lock/unlock frequency indicator. Input power: 115/230 V, 50 to 400 Hz. Weight: 27 lbs.
