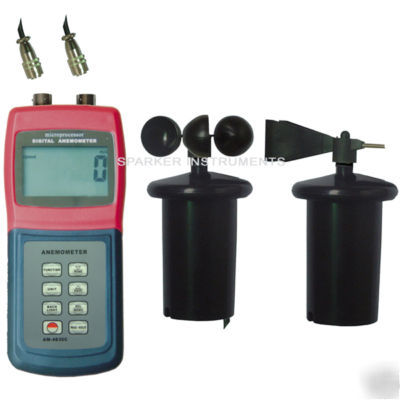

Multi-function thermo anemometer speed air flow meter
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
* Display 0.5" (13 mm) 4-digit LCD
* Measurement units Air Velocity: m/s, km/h, ft/min, knots
Air Flow: CMM (m /min);CFM (ft /min)
Direction: from the North direction
* Sampling rate reading per second approx
* Sensors Air velocity/flow sensor: 3-cup probe
* Direction probe: Low friction probe
* Automatic Power off 0-9 minutes set by users
* Data Output RS 232 C serial interface
* Operating Temperature 14 F to 140 F (-10 C to 60 C)
* Operating Humidity Max. 80% RH
* Power Supply 4x1.5AAA size
* Weight 260g (0.57lb) including batteries & probe
* Dimensions Main instrument: 156x67x28mm (6.1x2.6x1.1")
Velocity sensor: 65x65x115mm
Direction sensor: 86x69x115mm
* Optional Accessories Cable+Software for RS232C or USB
Air Velocity Range Resolution Accuracym/s (meters per sec) 0.4-45.0 0.1 m/s (2%+0.1m/s)km/h (kilo-meters/hour) 1.4-162.0 0.1 km/hr (2% +0.1km/hr)ft/min (feet per minute) 80-8860 0.1 ft/min (2% + 1ft/min)knots (nautical MPH) 0.8-88.0 0.1 knots (2% +0.1 nots)Air FlowCMM (cubic meters/min) 0-9999 0.001 to1 (2% +1m /min)CFM (cubic ft/min) 0-9999 0.001 to1 (2% +1ft /min)Beaufort Scale 0-12 0.1 0.5Direction 0-360 22.5 22.5 Wave Height 0-14 0.1 0.1Air Temperature 14 - 140 0.1 0.9 -10-60 0.1 0.5
