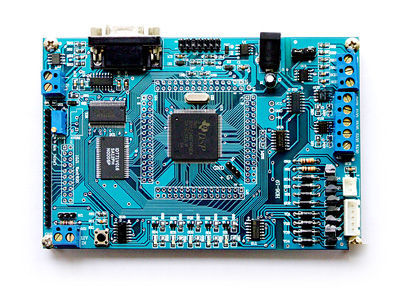

New DSP2407 development board + usb ti dsp XDS510 jtag
With unique serial download function (with discontinuous segment can be downloaded the code, different from the serial BootLoad), TI
Need simulators can download a program operation. For preliminary study DSP, can be saved a lot of expenses.
DSP TMS320LF2407A, the highest frequency 40MHz,
DSP built-in 2.5 k an SRAM words,
The expansion of the program 32k 16bit x x 16bit 32k RAM, the data of RAM,
DSP all functions 120pin derivation, pin,
Programs and data, IO can independently addressing a64k,
The I/O input/output module - button control four LED,
SCI module - RS232 communication interface circuit,
SPI_DA module - 4 road eight serial D/A output,
A/D conversion module - 2 road 10 A/D sampling (extensible to 16 road),
CAN a CAN bus transceiver module, -
PWM control PWM module, miniature dc motor rotation,
T6963 128 * 64 LCD controller interface derivation,
SEED1520 controller 16 x2 character LCD interface derivation.
1149.1 IEEE standard JTAG interface,
120pin all functional pin sockets, users can be drawn by extensive use,
DB9 standard RS232 interface socket,
4 and D/A output interface socket,
2 and A/D output interface socket,
SEED1520 controller 16 x2 character LCD interface,
T6963 128 * 64 LCD controller interface,
LCD backlit power external interface, can choose jumper.
[code and the experimental project]
1 external RAM test program experiment;
2 the timer control experiments LED procedures,
3 buttons and regimes control program experiment;
4. SCI serial communication experiment,
5 SPI interface of D/A experiment,
7. Thecan bus communication experiment,
8 PWM motor control experiment;.
9 stepper motor control experiment,
10. SEED1520 display control experiment,
11 T6963 display control experiment;.
Above all provide C language program, which version of the program source experiment 2 simultaneously providing C and by asm version.
1 complete diagram (PDF), grasp several practical application of technology,
2 write the FLASH online burn tool for the method and procedure; the user curing
3 user manual: very detailed, contains circuit analysis is introduced, and CCS2000 code forthright guidance; etc.
1, DSP2407 development board 1 piece
Attachment 1 2, serial straight
TI DSP XDS510 USB JTAG Emulator TI DSP JTAG TMS320
NEW USB XDS510 TI DSP JTAG Emulator Programmer
100% Compatible with TI XDS510, Fully Support CCS 3.3, Fourfold speed higher than similar products.
Fully support Davinci DM642 now!
TMS320C2000 series: F20x/F24x/F240x/F28xx etc.
TMS320C3000 series: VC32x etc.
TMS320C5000 series: 54x/55x etc.
TMS320C6000 series: 62xx/67xx/64x etc.
1:Useing high-speed USB2.0 interface, plug and play, transmission
speeds about 480MB / S, compatible with USB1.1 host, the emulator used
2:Standards JTAG simulation interface, do not occupy users's
resources, security JTAG interface , Plug JTAG interface at random
3:work with Windows98/NT/2000/XP operating system
4:work with software TI CCS2.X, CCS3.1 and CCS3.3,C language and
assembly language, used TI XDS510 Emulator driver in CCS3.3
5:Realize Flash program for F28x/F240x/F24x/F20x
6: Emulating with high speed, support RTDX
7:Not use the system resources
8:Emulator self-regulate of DSP voltage as the target board
9:Unique design that resolve the problem that the target board System
crash and can't restart CCS with no voltage
10:Debugging with TI:TMS320C2000 TMS320C3000 TMS320C5000 TMS320C6000
11: Debugging with more than one chips on one target board with a
development system at the same time
12:Can upgate new firmware with TI
13:Easy to install, run stable at high speed, lower price
Please confirm that EMS can arrive your place, if cann't, you need to
