> Qty 10 * 74HC74 74HC74N dual d-type flip-flop dil 14
Qty 10 * 74HC74 74HC74N dual d-type flip-flop dil 14
Wide supply voltage range from 2.0 to 6.0 V
Symmetrical output impedance
The 74HC/HCT74 is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC
standard no. 7A. The 74HC/HCT74 are dual positive-edge triggered, D-type flip-flops with individual data (D) inputs, clock (CP) inputs, set (SD) and reset (RD) inputs; also complementary Q and Q outputs. The set and reset are asynchronous active LOW inputs and operate independently of the clock input. Information on the data input is transferred to the Q output on the LOW-to-HIGH transition of the clock pulse. The D inputs must be stable one set-up time prior to the LOW-to-HIGH clock transition for predictable operation. Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times.

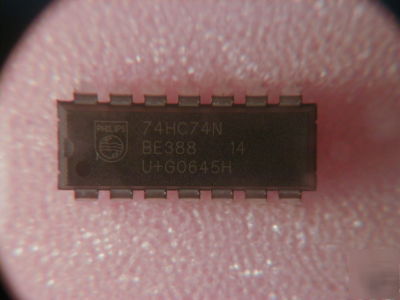

This chip comes in a 14 pin Dual In Line Package
**FREE POSTAGE ON EACH ADDITIONAL ITEM**
