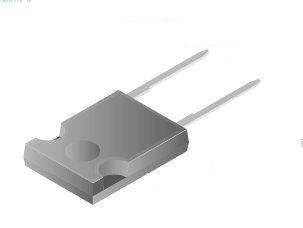

RHRG75120 fast soft recovery diode 75A 1200V TO247 (X2
The RHRG75120 is a hyperfast diode with soft recovery characteristics (trr<85ns). It has half the recovery time of ultrafast diodes and is of silicon nitride passivated ion-implanted epitaxial planar construction.
This device is intended for use as a freewheeling/clamping diode and rectifier in a variety of switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.
Hyperfast with Soft Recovery. . . . . . . . . . . . . <85ns
Operating Temperature . . . . . . . . . . . . . . . . 175 C
Reverse Voltage . . . . . . . . . . . . . . . . . . . 1200V
Avalanche Energy Rated Planar Construction
