Thermal arc W1001500 fabricator 190 mig welder package

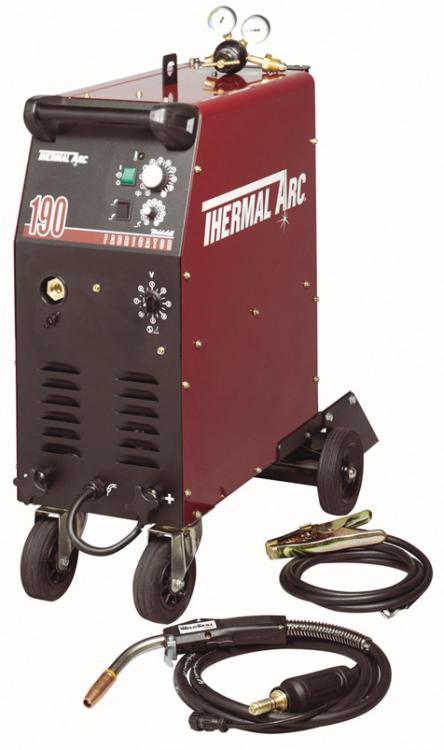

Thermal Arc W1001500 Fabricator 190 Mig Welder Package
Thermal Arc Fabricator 190 MIG Welder Package - With Free Thermal Arc Claret auto darkening helmet # W4011900. $185.00 value Model: W1001500 The Fabricator 190 is a 230 Volt integrated MIG machine with a high 190 Amp maximum output, 8 voltage steps, spot timer and industrial spool capacity of 33 or 44 lb. supplied as standard with a wheel kit, cylinder rack, regulator and quality Tweco Weldskill gun. Fabricator 190's standard features ideal for car panel and sheetmetal fabrication up to 5/16" plate. Applications include:
* NEW 8 Voltage Taps! Providing awider operating range of 20 to 190 amps with a smooth and stable arc characteristic. Unbeatable performance from 22 gauge to 5/16 in. (7.9mm) thick in a single pass.
* Higher Output! The Fabricator 190 punches out 190 amp maximum output.
* Quick Change Polarity! Simple, quick change (no tools required) polarity from the front of the power source.
* 33 lb./44 lb. Spool Capacity! Wire compartment design allows easy installation of 44 lb., 33 lb., 10 lb., 8 in. and 12 in. wire spool sizes.
* Overload Protection! Shuts down the power source to protect the internal electrical components from overheating.
* Metal Feed Plate! The metal wire drive system features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
* Easy To Use Cylinder Rack! Single cylinder rack allows easy roll on loading of the gas cylinder.
* Spot Timer Kit! Adds a unique spot weld feature to give an accurately controlled spot time when spot welding.
* Brilliant Characteristics! Extremely smooth arc and negligible spatter using a wide range of gases, materials and material thicknesses.
* New Gun! Quality Tweco WeldSkill MIG gun.
* .023-.030/.035" reversible drive roll
* 10 foot Tweco Weldskill MIG gun
* Amperage range: 30-190 Amp
* Max. open circuit voltage: 60V DC
* Wire Feed Speed: 80-700 inches per minute (2-18 m/min.)
* Rated Output: 145 Amp at 22V, 30% duty cycle, 190 AMP at 23.4V, 15% duty cycle
