45 kva transformer pri 480V sec 208Y/120 3 ph dry type

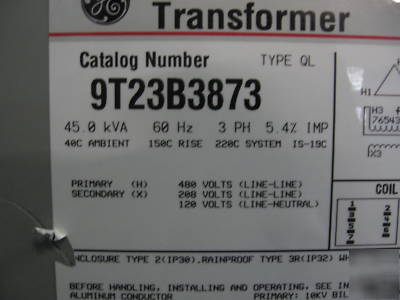

THIS ITEM IS IN GOOD USED/TESTED CONDITION WITH A 1 YEAR REPLACEMENT WARRANTYGE TRANSFORMER CAT NO 9T23B3873 45 KVA DRY TYPE THREE PHASE TRANSFORMER. 480V PRIMARY 208Y/120 SECONDARY. TRANSFORMER CAN ALSO BE FED WITH 208V TO GET 480V . SPECS CAN BE SEEN ON THE PICTURE OF THE LABEL . 1 YEAR REPLACEMENT WARRANTY. CATALOG SPECS : TYPE QL; CONSTRUCTION DRIP PROOF, VENTILATED; PRIMARY VOLTAGE 480 V DELTA; SECONDARY VOLTAGE 208 V STAR/120 V; 60 HZ; POWER RATING 45 KVA; 3 PHASE; TAPS (2) +2.5 PERCENT X (4) -2.5 PERCENT; TEMPERATURE RISE 150 DEG C; NEMA 2; SIZE 24 INCH W X 18.07 INCH D X 32-1/4 INCH H; WEIGHT 365 LB (ALUMINUM), 410 LB (COPPER); APPLICATION INDOOR; APPROVAL UL 506, UL 1561; 9T23B38 MODEL; APPLICABLE STANDARD NEMA ST-20, ANSI, IEEE CALL OR EMAIL WITH ANY QUESTIONS Edison Electrical Surplus Inc. provides a 1 YR REPLACEMENT WARRANTY on all items
