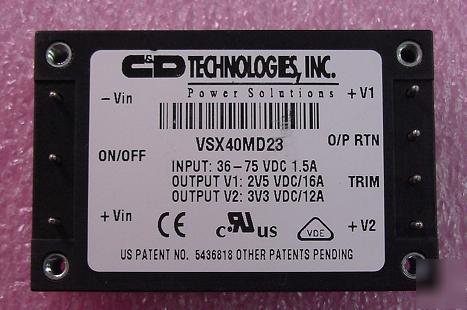

Dc-to-dc converter VSX40MD23 48V in 2.5V/3.3V out qty 1
DESCRIPTION: The VSX40 Series are dual-output converters with a 36-75V input. The industry quarter-pak size of 2.3" x 1.5" x 0.5" coupled with 89% efficiency is an industry high-density breakthrough.
These converters utilize Vx high density technology. This technology has been featured in the highly efficient VKP and VKA series now successfully in use worldwide. The very high 89% efficiency minimizes the requirement for heat-sinking, and the low output ripple minimizes the need for additional filtering. For maximum flexibility, power can be traded between outputs as required. The VSX40 series feature virtually all of the options required by design engineers but not at the competition s typical additional price for each option. This multitude of features are standard on the VSX40 series.
* Input Range: 36-75V (at 1.5A)
* 2.5V (at 16A) and 3.3V (at 12A) Dual Output
* Output Voltage Trim, +/-10%
* -40C to +100C Baseplate Temp.
* Output Current Limit, Self-Start
* 1,500V Isolation, Input to Output
* Continuous Short Circuit Protection
* Non-latching Protection: Input Undervoltage; Input Overvoltage; Output Overvoltage; and Overtemperature
* Output Voltage Tracking at Turn-on and Turn-off
* Distributed Power Architectures
These are new and unused - excellent condition.
