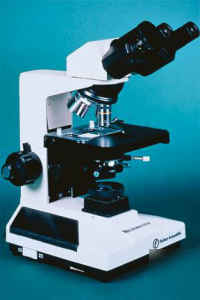

Fisher scientific-micromaster microscope cat no.12-561B
This a used microscope but in very nice clean condition
Eyepieces: 10X wide-field, DIN standard; binocular and trinocular models equipped with two eyepieces
Head: available in monocular, binocular and trinocular configurations; interchangeable and rotatable 360 X with a 30 X inclination; binocular and trinocular heads adjustable for interpupillary distance and dioptric differences, interpupillary adjustment range, 55 to 75mm, adapters available for photomicroscopy or videomicroscopy
Nosepiece: quadruple reversed nosepiece with positive click stops enabling easy slide manipulation without interference by the objectives; aids in keeping optics clean
Objectives: planachromatic objectives produce true color images without blurring; 4X (0.10 N.A.), 10X (0.25 N.A.), 40X (0.65 N.A. retractable), and 100X (1.25 N.A. retractable) oil immersion DIN standard objective
All are parfocal, parcentered and coated to resist reflection, optional objectives are available
Stage: precision-machined mechanical stage with oversized, low-position, coaxial control knobs; chemical-resistant finish with removable spring-clip slide holder secures slide to the stage
Focus control: low-position, coaxial, coarse/fine controls; adjustable safety stop prevents slide damage; tension adjustment ring permits custom user setup
Condenser: 1.25 N.A. Abbe condenser, fitted with an iris diaphragm and swing-in auxiliary lens for low magnification
Illumination: Koehler illumination with variable-intensity quartz halogen lamp, field diaphragm and collector lens with integrated drop-in filter holder; blue and frosted filters included 6V 20w lamp with solid-state dimmer and heavy-duty 3-prong cord
Finish: chemical-resistant baked-on paint with stipple finish resists fingerprints and smudges
Overall dimensions: 10.5L x 8.5W x 17 in. H (27 x 21.5 x 43cm). For 110V 50/60Hz.
