1" 3 way hydraulic diverter valve max 250 bar

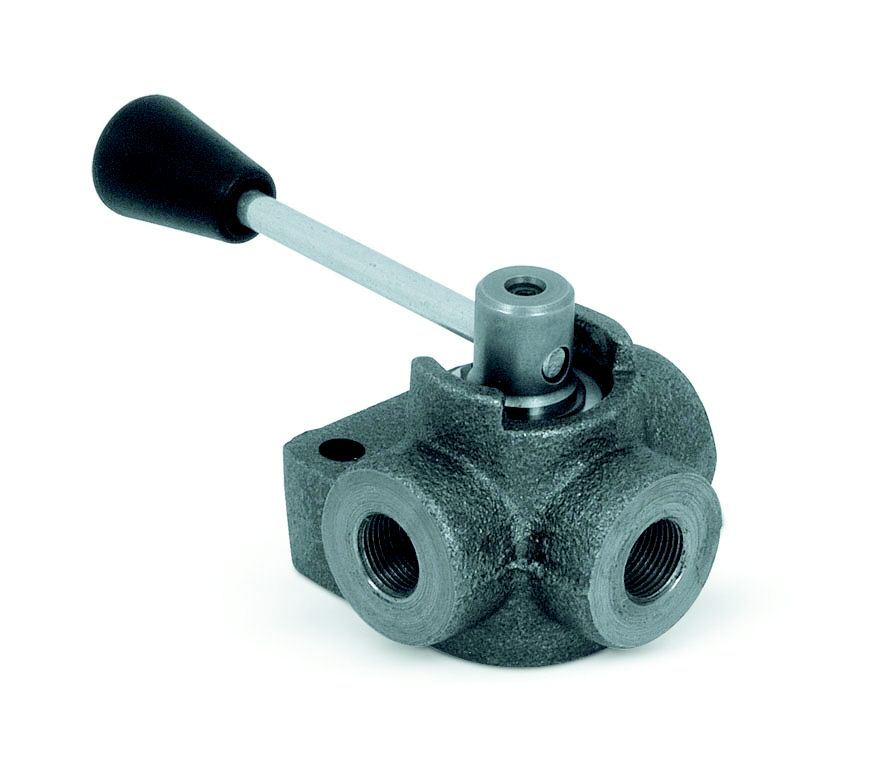

1" 3 WAY HYDRAULIC DIVERTER VALVE MAX 250 BAR
1" 3 WAY HYDRAULIC DIVERTER VALVE.
3 Way divertors are used to divert the flow towards 2 different outlets.
* Connect P to the pressure flow, A and B to the circuit ports where the flow has to be diverted. With the lever in position 1, the flow is connected towards port A: with the lever in position 2, the flow is connected towards port B. With the lever in the central position, ports nP,A and B are all connected (open centre).
