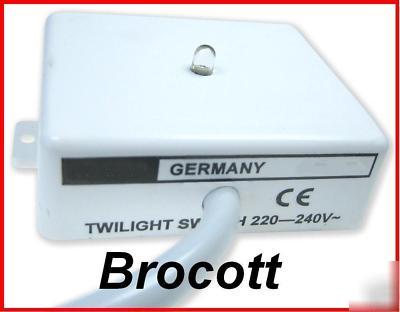

Daylight switch - 240VAC - automatic twilight switch
Electronic Automatic Daylaight Switch - 240vac
Automatic Daylight Switch 240vac
The twilight/daylight switch, switches on e.g. lamps at nightfall and off again at daybreak. Operating voltage 240vac (ideal for home & business security)
Distribution output: relay 1 x change over, max. 3A(resistive load) max. 1A (inductive load). The sensitivity of the luminous intensity can be changed by partially covering the sensor mechanically. The built in switching relay has both 'Normally Open' & 'Normally Closed' contacts so that the module can be used for switching appliances on or off.
Please be aware that we sell all of our products via other sources too which sometimes affects our stock levels.
* Operating voltage: 210...240VAC
* Current consumption: < 40mA
* Switching: max. load 3A(resistive load) max. 1A (inductive load)
* Turn-on brightness: approx. 10 Lux 50%
* Turn-off brightness: approx. 60 Lux 50
* Delay in reaction: approx. 30 sec. 50%
* Temperature range: approx. - 15 C...+ 40 C
* Dimensions: approx. 70 x 60 x 22 mm
