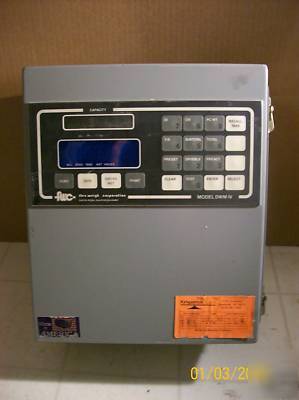

Flex weigh dwm-iv scale control enclosure
FLEX WEIGH DWM-IV DIGITAL WEIGHTMETER

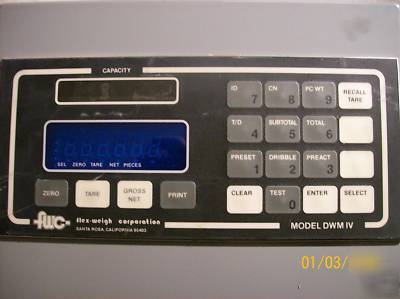

Keyboard Programmable Setup: All select functions, setup and calibration are programmable through the keyboard. Access to setup mode is enabled by internal program select.
Note: * indicates a programmable function
Pushbutton Zero * Used for establishing gross zero. Enabled at a range of 2% or full scale capacity.
Pushbutton Tare Automatically tars the weight of the object placed on the scale.
Auto Zero Tracking * Automatically tracks zero within 1/4 digit to ensure a stable zero.
Gross/Net Pushbutton View net and gross weight when tare weight has been entered.
Print Pushbutton * Transmits data out of serial port.
Numeric ID * Single register to enter up to seven digits of numeric identification.
CN * Six digit consecutive number increments each time the print button is pressed.
Recall Tar Pushbutton * Used for recall viewing of tare weights.
Keyboard Tare * 10 Tare lookup (0-9) to enter predetermined tare values.
PC WT Entry* 9 Piece weight look-up (1-9) determines count by entering pre-determined piece weight.
Weight Accumulators * 10 weight accumulation registers with sub-total/total.
Digital Filter * Compensate for vibration or motion, keyboard selected from 1 to 32 updates per average.
Data Output * Serial ASCII 20MA current loop with selectable baud rates (150-19, 2K), selectable auto or manual print, continuous data out, or bi-directional communication.
Remote Control Inputs Zero; Tare; Net/Gross; Print. Requires voltage free contact.

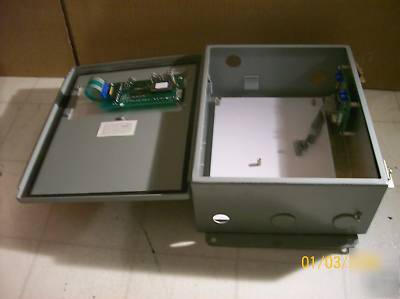

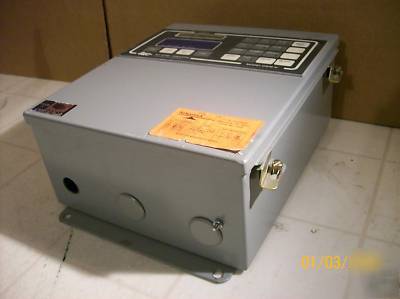

Enclosure NEMA-12 wallmount/dust tight
DWM-IV STANDARD wallmount w/ NEMA-12 enclosure .12"h X 10"w X 5"d
