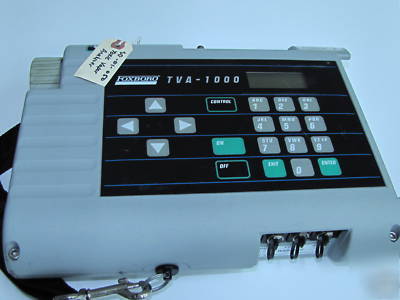

Foxboro portable toxic vapor analyzer fid/pid
Readout Bar graph & 4- digit LCD
Dynamic Range 0.5-2,000 ppm (PID) isobutylene; 0.5-50,000 ppm (FID) methane
Linear Range 0.5-500 ppm (PID) isobutylene; 0.5-10,000 ppm (FID) methane
Minimum Detectable Limit 100 ppb benzene (PID); 300 ppb hexane (FID) (laboratory conditions)
Sample Flow Rate 850-1250 cc/min nominal
Power Rechargeable NiCd Battery
Logging Capacity 850-18,000 points mode specific
Temperature Range 0-40 C (32 F - 104 F)
Fuel None required (PID); 99.995% hydrogen (FID)
Portable Operation Time 8 hours (with reference operating conditions)
Approximate Mass 5.8 kg (13 pounds)
Nominal Dimensions 13.5 x 10.3 x 3.2 inches (343 x 262 x 81 mm)
Analog Output 0-2V dc (non-calibrated)
Repeatability +/- 1% (PID); +/- 2% (FID)
The unique dual detector FID/PID
design can handle a wide range of
compound vapors present at processing
monitoring at lower ppm levels.
For reliable measurements of hazardous
spills or emissions, the TVA1000B
responds quickly in an emergency.
The ability to quickly detect the
presence of hot spots is key to
locating the source of the hazard.
Hazardous Waste Site Evaluation
The TVA1000B allows quick and easy
identification of the hazard location
The TVA1000B is a primary tool for
determining if a UST is leaking and
the extent of the contamination.
The TVA1000B can help you maximize
the effectiveness of your plant ventilation
system, and identifies trouble
spots. Use it to survey ambient vapor
levels in specific breathing zones or in
general plant environments, and log
The TVA1000B enables quick and easy
detection of natural gas leaks.
