Glassline D1507-1 power wheel dresser

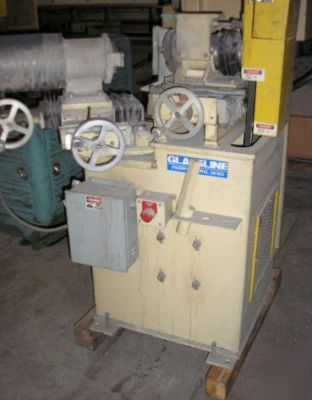

The Glassline Model D1507-1 power dresser has been especially designed to re-true U-type pencil edging wheels, periphery wheels, convex type diamond wheels and angle periphery wheels.

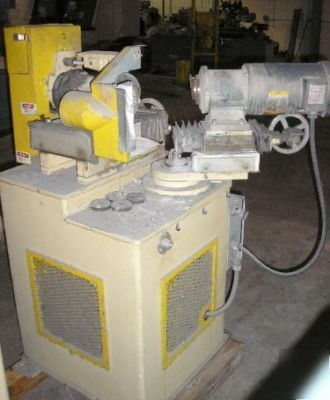

The diamond wheel to be re-trued is mounted on a special arbor for the particular wheel and indicated for run out. The arbor is fitted to a spindle mounted in a bracket attached to the worktable. The spindle is driven by a DC gear motor for variable rotation. The gear motor is directly coupled to the spindle but is mounted outside of the work tank.
The spindle is mounted in a bushed, tubular housing, and is equipped with a reciprocating cylinder. This cylinder oscillates the diamond wheel as the O.D. of the wheel is being reduced. This feature is used to dress periphery type wheels or reduce the O.D. on pencil edge wheels.
