Hp 54620A 16 channel 500 msa/s logic analyzer

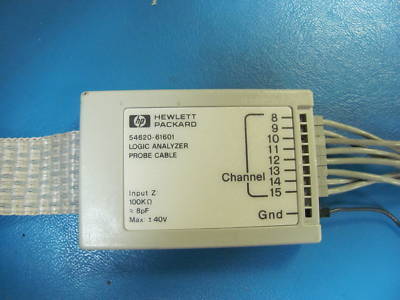

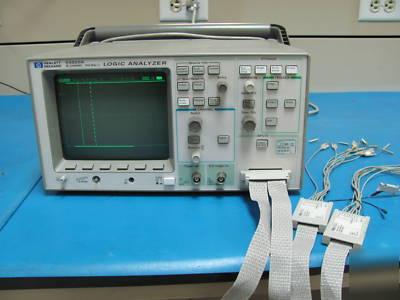

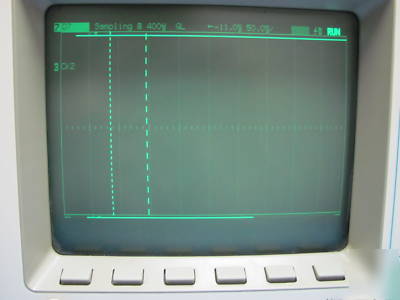

The HP 54620A has been powered up and runs stably. All buttons and functions work correctly. It is in excellent cosmetic shape with no dings or dents. The screen is clear with no dead lines or pixels. Both sets of logic probe cables are in excellent shape. All around, this is a very clean and well taken care of unit.
* Maximum sample rate: 500 MSa/s
* Autoscale instantly shows you all active signals, scaled for easy viewing
* Triggering modes: edge, pattern and advanced (including duration times and sequences)
* Trigger on all input lines and external trigger
* Automated measurements of frequency, period, duty cycle, width, delay, and setup and hold time
