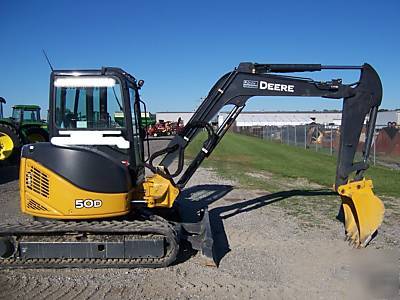

John deere 50D compact excavator zero tail swing nice
24" Trenching Bucket, Standard Arm, 5 metric ton class,
Auxiliary Hydraulics, operator manual.
The photos were retouched only to white-out the
previous owner's personal information for privacy.
This excavator was purchased new from us on
October 17, 2008. Warranty will expire on October 17, 2009.
Manufacturer and Model . . . . . . . . . . . . . . . . .Yanmar 4TNV88
Non-Road Emission Standards . . . . . . . . . . . . .certified to EPA interim Tier 4 emissions
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . .134 cu. in. (2.19 L)
Net Power (ISO9249) . . . . . . . . . . . . . . . . . . . .38.1 hp (28.4 kW) @ 2,400 rpm
Each track independently driven by hydrostatic axial-piston motor connected to two-stage planetary gear-reduction box
Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.7 mph (2.6 km/h)
High . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7 mph (4.2 km/h)
Swing Speed . . . . . . . . . . . . . . . . . . . . . . . . . .9.0 rpm
Swing Brake . . . . . . . . . . . . . . . . . . . . . . . . . . .spring applied, hydraulically released, automatic
Closed center load sensing with one variable-displacement pump and one fixed-gear pump
Pump Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . .33.0 gpm (124.9 L/m)
Auxiliary Flow . . . . . . . . . . . . . . . . . . . . . . . . . .22.5 gpm (85.2 L/m)
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .hydraulic pilot-operated for boom,
arm, bucket, swing, boom swing, blade, travel, and auxiliary functions
Alternator Rating . . . . . . . . . . . . . . . . . . . . . . .55 amp
Work Lights . . . . . . . . . . . . . . . . . . . . . . . . . . .two halogen: one mounted on operator s
station and one mounted on boom
Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 deg.
Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 deg.
Counterweight . . . . . . . . . . . . . . . . . . . . . . . . . .1,455 lb. (660 kg)
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . .18.5 gal. (70 L)
Cooling System . . . . . . . . . . . . . . . . . . . . .6.9 qt. (6.5 L)
Engine Oil with Filter . . . . . . . . . . . . . . . . .9.1 qt. (8.6 L)
Hydraulic Tank . . . . . . . . . . . . . . . . . . . . . .13.2 gal. (50 L)
Maximum Digging Height . . . . . . . . . . . . . .18 ft. 6 in. (5.63 m)
Maximum Dumping Height . . . . . . . . . . . . .13 ft. 0 in. (3.96 m)
Maximum Digging Depth . . . . . . . . . . . . . .11 ft. 8 in. (3.55 m)
Maximum Digging Reach . . . . . . . . . . . . . .19 ft. 6 in. (5.94 m)
Minimum Front Swing Radius . . . . . . . . . .7 ft. 7 in. (2.32 m)
Transport Length . . . . . . . . . . . . . . . . . . . . 17 ft. 11 in. (5.46 m)
Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . .8,273 lb. (36.8 kN)
Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5,401 lb. (24.0 kN)
Blade Width . . . . . . . . . . . . . . . . . . . . . . . . . . .6 ft. 7 in. (2.00 m)
Blade Height . . . . . . . . . . . . . . . . . . . . . . . . . . .17 in. (430 mm)
Upperstructure Width . . . . . . . . . . . . . . . . .6 ft. 1 in. (1.85 m)
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . .8 ft. 4 in. (2.55 m)
Track Width . . . . . . . . . . . . . . . . . . . . . . . .16 in. (400 mm)
Undercarriage Width . . . . . . . . . . . . . . . . .6 ft. 7 in. (2.00 m)
Ground Clearance . . . . . . . . . . . . . . . . . . .13.4 in. (340 mm)
Tail Swing Radius . . . . . . . . . . . . . . . . . . .3 ft. 3 in. (1.00 m)
Engine Cover Height . . . . . . . . . . . . . . . . . .4 ft. 11 in. (1.51 m)
Maximum Blade Lift Above Ground . . . . . .16.9 in. (430 mm)
Maximum Blade Drop Below Ground . . . . .13.2 in. (335 mm)
Sprocket Center To Idler Center . . . . . . . . .6 ft. 6 in. (1.99 m)
Track Length . . . . . . . . . . . . . . . . . . . . . . .8 ft. 2 in. (2.50 m)
Counterweight Clearance . . . . . . . . . . . . . .24 in. (610 mm)
Ground Level at 10-ft. (3.05 m) Radius
Over Front, Blade Down . . . . . . . . . . . . . . . . . . .5,258 lb. (2387 kg) 5,258 lb. (2387 kg) 5,183 lb. (2353 kg) 5,183 lb. (2353 kg)
Over Side. . . . . . . . . . .2,301 lb. (1045 kg) 2,377 lb. (1079 kg) 2,261 lb. (1026 kg) 2,336 lb. (1061 kg)
DQuestions? Call (***)-272-5898 and ask for Gary.
* We do our best to accurately describe the item being sold.
