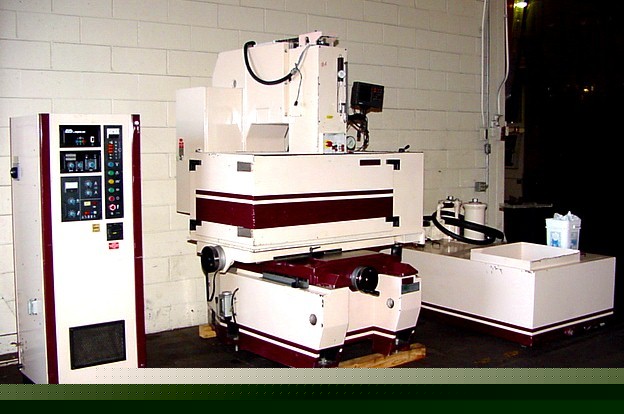

15.7" Y 19.7" X Chevalier SURE FIRST-DM540 RAM-TYPE EDM
15.7" Y Axis 19.7" X Axis Chevalier SURE FIRST-DM540 RAM-TYPE EDM
CHEVALIER "LARGE CAPACITY" RAM TYPE EDM
MODEL: DM-540 S/N: 005007 NEW: 1995
WORK TABLE SIZE ...................... 33.5" x 17.7"
LONGITUDINAL TABLE TRAVEL ............ 19.7"
CROSS TRAVEL ......................... 15.7"
WORTANK SIZE (INSIDE DIMS.) .......... 47.2" x 27.5" x 18"H
PLATEN SIZE .......................... 10" x 15- 3/8"
PLATEN TO TABLE ...................... 25.4" MAX.
THROAT DISTANCE ...................... 22- 1/4"
RAM TRAVEL (BACK SLIDE)............... 7.9"
QUILL TRAVEL ......................... 7.9"
MAX. WEIGHT ON PLATEN ................ 660 LBS.
MAX. WORKPIECE WEIGHT ON TABLE ....... 3,960 LBS.
DIELECTRIC RESEVOIR .................. 210 GALS.
WORKTANK TANK CAPACITY ............... 140 GALS.
HYDRAULIC RESEVOIR ................... 20 GALS.
APPROX. WEIGHT ....................... 5,700 LBS.
MACHINE DIMS ..................... 67"L-R, 75"D, 83" H
TANK IS .............................43" X 77" X 38"H
CABINET IS ............................ 24" X 36" x 60"H
-SIMPLE, UNDERSTANDABLE SPARK & SERVO CONTROLS
-SERVO CONTROLS FEATURING DITHER, MANUAL, EDGE FINDER,
AUTO RETRACT, AUTO LOCK, ORBIT STOP, ORBIT LOCK,
-LOW PEAK CURRENT, ARC DURATION (.5 TO 1843 MICROSECONDS)
& % ON-TIME SELECTIONS FOR ULTRA-FINE FINISHING
"HEIDENHAIN" 2-AXIS DIGITAL READOUT DISPLY
MACHINE IS 220/240/380/415/440/575 VOLTS
PRESENTLY SET-UP FOR 3/60/575 VOLTS
