4.73" wotan 5X cnc tabletype horizontal boring mill '94

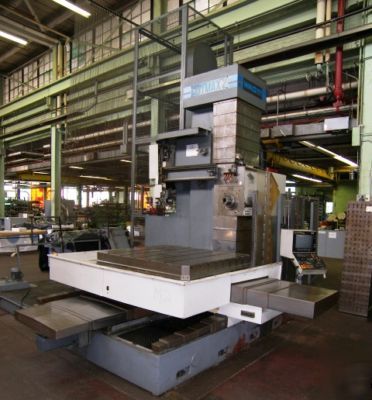

Preowned 4-3/4" WOTAN Five-Axis CNC Table-Type Horizontal Boring Mill With (80) Position Automatic Toolchanger, Model: Cutmax 2, S/N 50.198 (New 1994)
Number of positions of "B" rotary axis
Table longitudinal travel (W-axis)
Maximum table load with uniform distribution
Spindle speed range, infinitely variable in three
#TNC 415B HEIDENHAIN five-axis conversational CNC control with 14" color CRT,
and graphics. The TNC 415B uses an analog method of speed control in the spindle
drive, and is programmed in ISO format. The TNC 415B is capable of four-axis
(three linear and one rotary) simultaneous programming.
A.C. frequency controlled spindle and axis motors (SIEMENS drives)
#TS 511 HEIDENHAIN 3D touch probe
(80) Position automatic tool changer
Built-in t-slotted power rotary table with "B" axis CNC control
CAT 50 spindle taper with hydra-mechanically actuated tool clamping
Table and saddle supported by four-way bed design
Longitudinal and saddle way covers
All ways equipped with hardened and ground steel inserts
30 kW (40 H.P.) AC spindle drive motor
