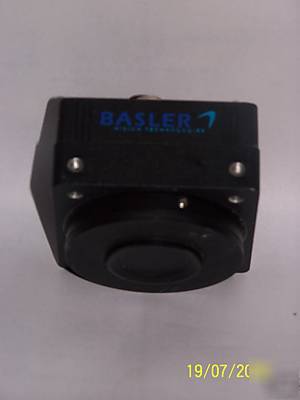

Basler A102K, area scan, megapixel resolution machine v
The Basler A102k area scan camera is designed for industrial users who require megapixel resolution with the advantages of the new CameraLink interface standard. The technical superiority of the new CCD sensor used in the A102k gives this camera an outstanding signal-to-noise ratio and exceptionally low smear
* Selectable 8- or 10-bit digital output
* High sensitivity: wavelength up to 900nm
* High signal-to-noise ratio up to 34dB (relative with Gain)
* Two electronic exposure control mode
* Area of Interest (AOI) scanning with higher frame rates at lower resolutions
* Low smear sensor and smear suppression feature
* Programmable exposure time: minimum 1us
* Compact housing manufactured with high planar, parallel and angular precision
Sony ICX-285AL
Progressive Scan CCD
Max. Frame Rate
(at full resolution)
Single pixel
8, 10, or 12 bits
Via external trigger or free run
Level-controlled or programmable
12 VDC (+/- 10%)
Max. 3.5 W
Housing Size
(L x W x H in mm)
PLEASE FIND FURTHER MUCH MORE TECHNICAL AND OTHER DETAILS
http:// /downloads/10744/Basler_A102f_EMVA_Standard_1288.pdf
