Concentric vent kit for takagi tankless water heaters
Z-Vent Concentric Direct Vent Kit
for Takagi Tankless Water Heaters
Pex Tubing StorePex Tubing Store 2SVSHTC43S
4" Concentric Vent Kit is manufactured from Category III stainless steel and is a must-have for all direct vent, sealed combusion (intake air from outdoors) Takagi tankless water heater installations.
If the unit is vented through the same wall it is installed on (typically, right above it) and the installation requires that the fresh air supply for the tankless water heater to be from outdoors, this kit is a convenient, cost-effective and easy-to-install solution.
This concentric vent kit is designed for 5-10" thick walls and is compatible with the following Takagi models:
T-KJr-NG, T-KJr-LP, T-K3-NG, T-K3-LP, T-K3-Pro-NG, T-K3-Pro-LP.
* The flue connection on the concentric vent kit is 4" and is poining downwards, allowing to connect it to the flue outlet of the Takagi tankless water heater with a single straight pipe run;

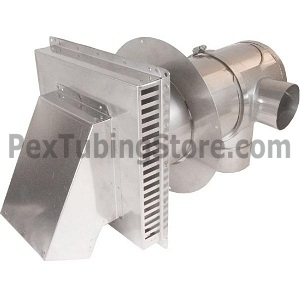

* The intake connection on the concentric vent kit is 3" and is poining to the side. To accommodate the installer, the intake could be rotated from side to side, pointing either to the right or to the left (picture shows intake pointing to the right);
* Adjustable thimble allows for installation in 5-10" thick walls;
* The OD of the concentric vent kit's body is only 6" and requires a hole diameter 6.5"-7", allowing for a faster installation with minimal wall instrusion;
The parts you need for a complete installation of a Takagi tankless water heater are:1. This concentric Vent Kit;
2. For Takagi Jr - part# TK-TV09; for Takagi T-K3 - part# TK-TV10 (direct vent conversion kit);
3. 2ZVB04 - flue pipe adapter with built-in backflow preventer;
4. 4" Z-Vent pipe (available in 2, 3 or 4ft lengths) - to connect the TWH's flue outlet to the concentric vent kit.
5. 3" aluminum duct (sold by ft) - connects the 3" TWH's air intake with the 3" outlet on the concentric vent kit (part# 1TLXXXX03).
6. (2) 3" gear clamps to secure the aluminum fresh air duct. (part# 7HS44XX).
