Hme 821 - snmp managed industrial switch, 8X 10/100BASE

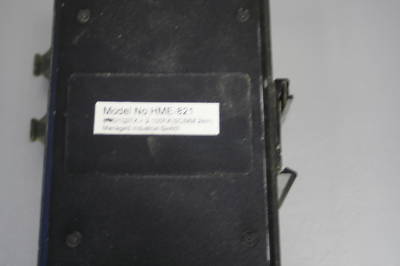

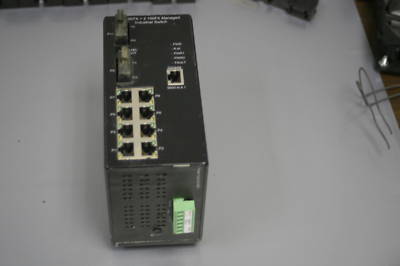

Up for sale is a good used HME-821 SNMP Managed Industrial Switch, with Dual Multimode Fibre Ports. Actual Photo is shown. Fully Functional.
* 8 TX ( RJ45 ) ports 10/100
* 2 FX multimode ( 2km ) fiber ports with SC connectors
* Supports Full/Half Duplex, auto-negotiation, MDI/MDI-X on TX ports
* Supports SNMP / RMON network management
* Supports IntraVUE network software
* Supports Husky Ring Redundant ring on any 2 ports
* Event notification by email, SNMP trap
* IGMP snooping for I/O over ethernet/IP
* Configuration Web Enabled, other software packages
* Web based configuration using browser
* Alarm relay output for port loss, loss of power
* Redundant power inputs 12-48 VDC
* Rigid aluminum case IP31
* Panel mountable bracket furnished
* Temperature rating of -10 C to + 70 C
* UL, ULc, CE, FCC approvals
* Class 1, Div 2 approved for Hazardous environments
Data sheet http://ethernetdirect.com/files/2009_Spec_Sheets/Industrial-Ethernet-Switch-Solutions/HME/HME-821.pdf
