New grayhill rotary switch 8YY33400 old stock

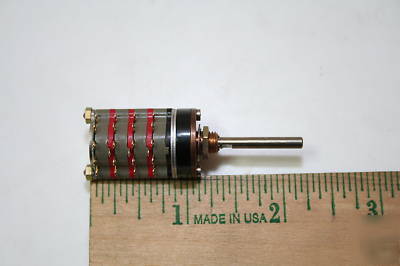

DESCRIPTION : Grayhill Rotary switch 8YY33400 new old stock. Here is all the information I have on this:
0.218 INCHES NOMINAL SINGLE MOUNTING FACILITY
0.125 INCHES MAXIMUM SINGLE ACTUATOR
0.096 INCHES NOMINAL SINGLE ACTUATOR
0.125 INCHES NOMINAL SINGLE ACTUATOR
0.872 INCHES NOMINAL SINGLE ACTUATOR
0.250 INCHES SINGLE MOUNTING FACILITY
SHAFT FLAT/SLOT ANGULAR LOCATION
180.0 DEGREES FROM CONTACT POSITION 1 SINGLE ACTUATOR
ROTOR THROUGH CONNECTION QUANTITY
ROUND, FLATTED SINGLE ACTUATOR
MAKES BEFORE BREAKS 1ST SECTION REAR
BREAKS BEFORE MAKES 2ND SECTION REAR
BREAKS BEFORE MAKES 3RD SECTION REAR
BREAKS BEFORE MAKES 4TH SECTION REAR
DETENT ROTATIONAL TORQUE RANGE
25.000/36.000 INCH-OUNCES SINGLE ACTUATOR
250.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL AND 50.0 MILLIAMPERES INDUCTIVE LOAD
250.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL AND 20.0 MILLIAMPERES INDUCTIVE LOAD
CONTACTS AND TERMINAL SURFACES GOLD AND CONTACTS AND TERMINAL SURFACES SILVER
