Vibration meter balmac 200

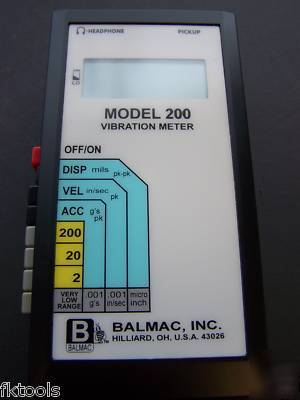

Model 200M Metric Vibration Meter
Model 200 Vibration Meter and 200M (Metric)
measures overall vibration amplitude in the range of
180 to 200,000 RPMs on rotating machinery.
Applications include checking vibration conditions on
bearings, motors, fans and pumps. The portable,
battery-operated, hand-held Meter features a rugged,
heavy-duty pickup for measuring vibration
Displacement, Velocity and Acceleration. The Meter

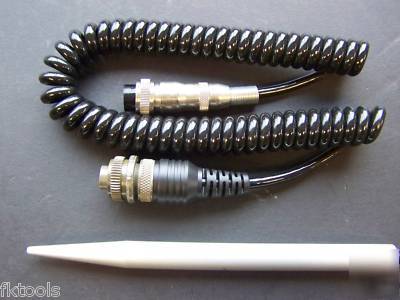

includes a 6' coil-cord cable, a 7" probe extension
and a magnetic base attachment for the Transducer.

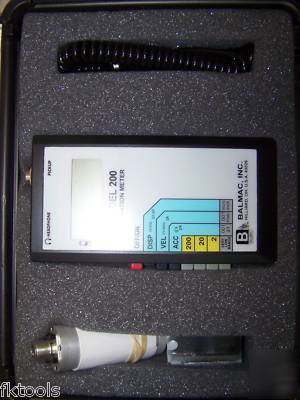

Meter, Cable and Transducer (shown)
7" Probe Tip (1/4-20 Mounting Stud)

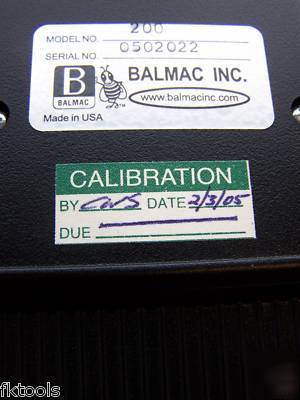

Manual and Calibration Certificates
B Book Guide to Vibration Measurement
Vibration Severity Wallet Card
English: 0.001 to 199 mils (peak-to-peak) Displacement
0.001 to 199 in/sec (peak) Velocity
0.001 to 199 g s (peak) Acceleration
Note: Very low Range in units of 0.001 g s, 0.001 in/sec, &
Metric: (200M) Displacement micrometers ( m) peak-to-peak
Velocity millimeters-per-second (mm/s) peak
RANGE: Four selectable ranges with over-range
English (Usable) Metric (Usable)
High 200 = 20.0 to 199.9 2000 = 200 to 1999
Medium 20 = 2.00 to 19.99 200 = 20.0 to 199
Low 2 = .020 to 1.999 20 = 2.00 to 19
VLR 20.0 to 199.9 20.0 to 199.9
Displacement: 0.000001 inch (0.001 mil) (1 micro-inch)
Velocity: 0.001 inch/sec (0.02 mm/sec)
RANGE: 180 to +120,000 rpm (3 to +2000 Hz) using
DISPLAY: 3 digit, numeric LCD (with Low Battery

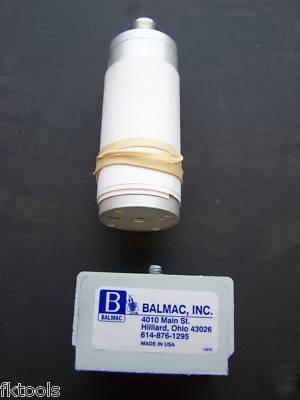

INPUT: Balmac Model 158 Vibration Velocity Transducer
Optional Pickup Model 160 Transducer for Low Frequency
OUTPUT: Signal for Headphones; 1/8" Mono jack

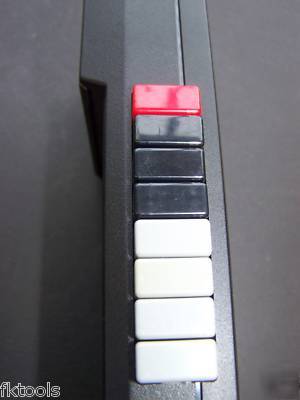

CONTROLS: Dedicated-function pushbuttons for all
POWER: One standard 9-volt alkaline battery
OPERATING TEMPERATURE: 32 to 122 F (0 to 50 C)
ENVIRONMENTAL:Relative humidity 0-95% non-condensing
Model 200 7.67" H x 3.97" W x 1.73" D (19 x 10 x 4 cm)
Carrying Case 13.5" H x 10.5" W x 4.5" D (34 x 26 x 11 cm)
Unit & standard accessories 5 lbs (2.3 kg)
