MAX232 RS232 ttl convertor adapter for basic/pic/68HC

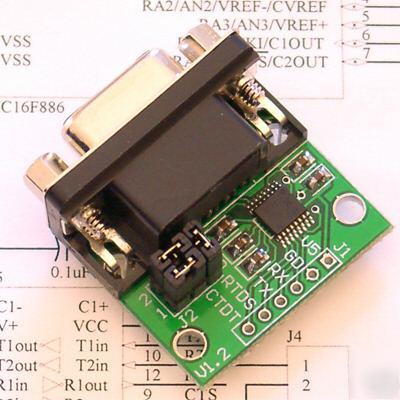

RS232 to 3~5 Volt TTL Signal Converter
This Converter is designed to be used by plug into a breadboard directly or by wires connect to your target board. The RS232 Converter provides RX/TX pins and two control pins for either DSR/DTR or CTS/RTS handshake signals. The handshaking options (Jumper configurable) can be configured as a null modem with no handshaking, or with DSR/DTR handshaking or with CTS/RTS handshaking. It has a standard DB9 female RS232 connector and can be connected to a standard PC COM port or any other terminal with a straight through extension cable. The 6-pin header can connect with any breadboard that requires serial I/O wiht the breadboard providing an operating voltage between 3.3 to 5 volts.
This module can works with Microchip PICs, Basic Stamps, Atoms, and any other microchip/microcontroller or anywhere you need TTL communication via RS232. It can be used as a bootloader interface, with a support of a bootloader chip and the in-circuit program, such as PIC using the C6, C7 hardware serial port. It also can be used for bootloading with handshaking signal. Please visit my store at fcpcb.ecrater.com.
Each unit inculdes the pin header
* Set your Real Time project via RS-232
* Reads values and communicates with the PC
* Turn your PC into a thermometer or voltmeter using Visual Basic or other software
* Control a motor, switch, sensors or what ever with your PC
* Microcontroller bootloader interface
Request To Send (RTS) or Data Set Ready (DSR)
Clear To Send (CTS) or Data Terminal Ready (DTR)
* Null modem (no handshake) 1-2 and 5-6
* CTS/RTS handshake 3-5 and 4-6
* DTR/DSR handshake 1-3 and 2-4
