New ole hickory pits smoker model el-ec propane *** ***

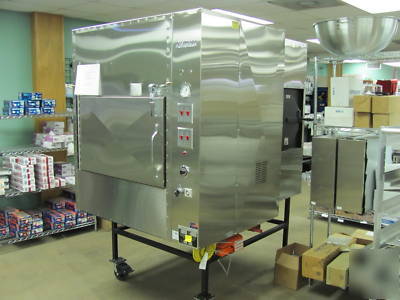

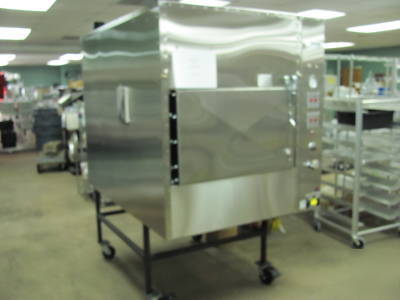

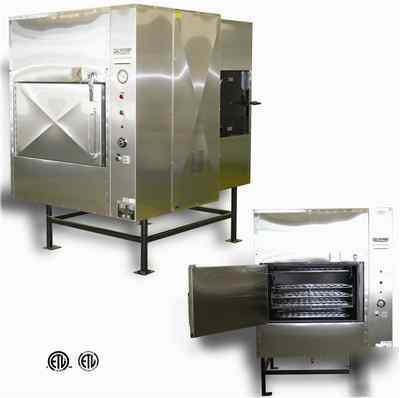

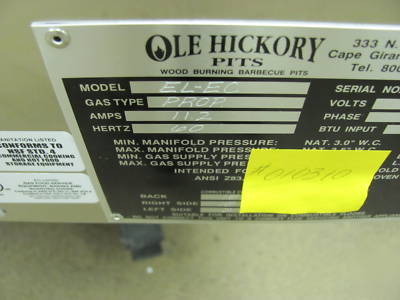

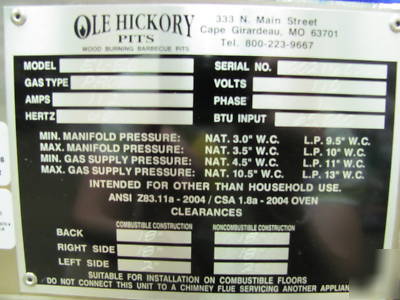

Ole Hickory Pits SmokerModel: EL-ECSerial Number: 100216022
Revolving Racks: (15) 12 x 30 Cooking Surface: 37.5 Sq. Ft.
Chicken (Whole) - 40;(Half) - 105
Construction: Heavy Duty 12 Gauge Steel Interior (100% welded & inspected seams) Tubular Steel Frame, 22 gauge stainless steel exterior, Mineral Wool Insulation - rated 1200 degrees F. (contains no asbestos or Fiberlass)

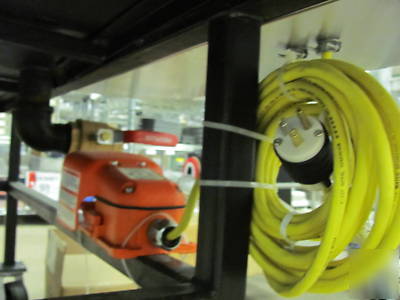

Electrical: 110 Volts, 60HZ, Single Phase, 15 Amp - AVOID NON-GROUNDED EXTENSION CORDS.
Propane GasGas Burner: 65,000 BTU Burner with Electronic Ignition

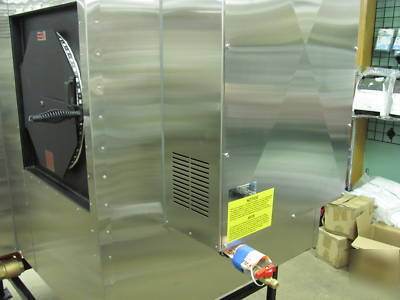

Firebox: One regular fireplace size log will last for up to 6 hours of cooking. Air over firebox circulation.

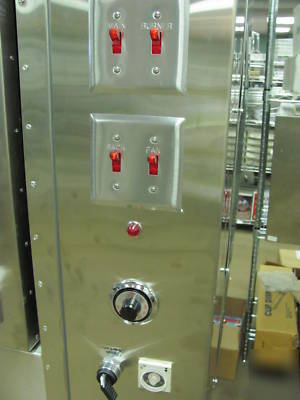

Temperature Range: Thermostat control range 100 degrees F. to 325 degrees F.
Upper Limit Control Switch: Extra Safety Feature.

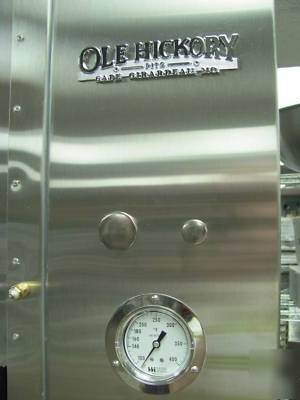

Dial Thermometer: 2 1/2" Diameter
Jog Button: Rotisserie Advance.
Convection System: One 1/4 HP motor with 10" fan blade provides a mix of both heat and smoke for product consistency.
Grease Drain: 2" Pipe with 2" Ball Valve.

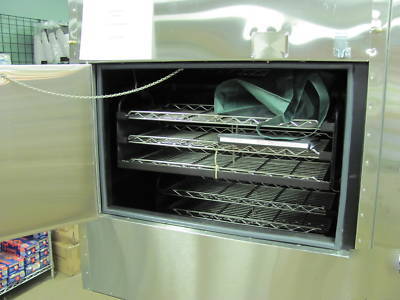

Rotisserie: 15 Racks, 12" x 30", 37.5 Sq. Ft. Cooking Surface.Nickel-chrome (stainless available at extra cost) Removable for easy cleaning.
Rotisserie Drive: Heavy Duty 1/4 HP Motor - long lasting chain drive system utilizing gear reduction.
ADDED OPTIONS:Cook and Hold Feature for keeping product warm after cooking.Casters.
WARRANTYOle Hickory Pits warrants its product and components to be free from defects due to faulty
twelve (12) months from the date of delivery.
