Nitek DL2105 RS232 utp twisted pair complete kit
Manufacturer: NITEK Model/Part #: DL2105 CONDITION

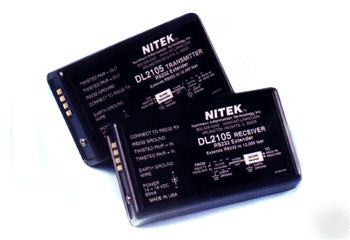

Nitek DL2105 RS232 UTP Twisted Pair Complete Kit
The DL2105 system provides data transmission for RS232 signals at rates up to 64K Baud for distances up to 12,000 feet (3,657 meters).
The DL2105 is designed for operation over Category 2, 3, 4 or 5 unshielded twisted pair (UTP) cables and standard 24 AWG telephone pairs. With this system it is unnecessary to use 18 AWG shielded pairs. The system works equally well over existing communication cables, computer network spare pairs or new cable installations. A highly balanced output design assures that the system will not interfere with other equipment on the network.
The DL2105 units are designed for easy connection to standard security equipment, including keyboards, matrixes, P/T/Z systems, access control systems, CPU units, etc.
The DL2105 is a two-unit system that connects using twisted pair from transmitter to receiver to extend RS232 up to 12,000 feet (3,657 meters). All connections are via a screwless terminal block that accepts wire sizes from 14 AWG to 26 AWG. The system works with all Baud rates up to 64K. It is possible to daisy chain up to 24 receiver units (extra receivers must be ordered separately) from a single transmitter.
The system includes a transmitter, receiver and power supplies. Some of the typical applications include remote keyboard control of multiplexers and matrix systems and use in access control systems.
