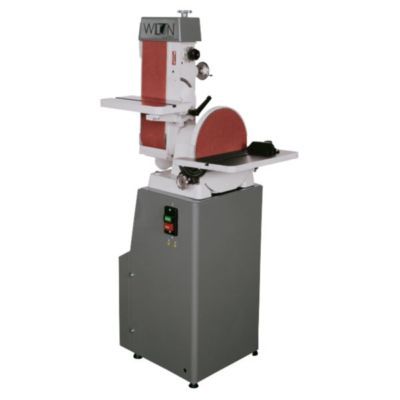

Wilton 4200 / 4200A belt & disc sander machine J4200
WILTON 4200A INDUSTRIAL COMBINATION BELT AND DISC FINISHING MACHINE: 1-1/2HP TEFC Motor, 1PH, 115/230V, Miter Gauge, Push Button Switch
2 YEAR FULL WARRANTY! NEW IN FACTORY BOX!
Handles virtually all finishing operations in a production line, metal or wood pattern shop, machine shop, cabinet or school shop in one compact unit. A powerful 1 -1/2 HP motor provides optimal speeds of 1960 RPM for disc and 2850 SFPM for belt finishing. These speeds are ideal for working in metal, wood, plastics, compositions, leather, and more. A deluxe miter gauge is standard equipment with these machines.
* Belt operates at any angle.
* Contour finishing, mitering, flat finishing, beveling and precision finishing.
* Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge.
* Fully machined, balanced disc runs vibration free.
* Adjustable heavy duty, cast iron, removable platen.
* Removable upper guard for contour finishing.
* Variable-position locks; belt head adjusts vertically, horizontally and in-between.
* Large cast iron slotted table.
* Adjustable dust deflector and dust chute.
* Completely enclosed drums and a guarded sanding belt.
* Heavy-duty, one piece steel stand.
* Belt Size (in./W x L): 6x48
* Belt Table Size (in.): 7-3/8 x 14-3/4
* Belt Table Tilt: 45 Out,20 Platen(in./W x L)
* Platen (in./W x L): 6 1/4 x 14-3/4
* Miter Gauge Groove (in.): 3/8 x 3/4
* Disc Table Size (in./W x L): 12 x 16-3/8
* Disc Table Tilt: 45 Out; 20 In
* Motor 4200A: 1-1/2 HP, 1Ph, 115/230V
* Motor 4202A: 1-1/2 HP, 3Ph, 230/460V
* Dimensions (in./W x D x H): 25-1/2 x 19 x 57-1/2
