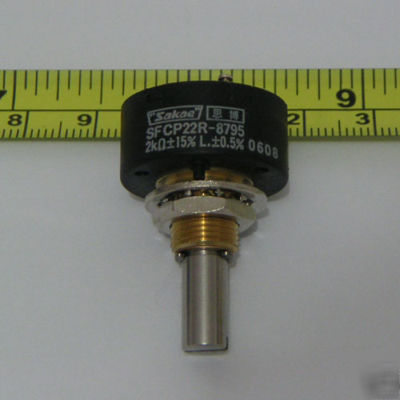

(2) sakae precision potentiometer,SFCP22R, long life
Model.SFCP22R-8795 2K 15% L. 0.5%
Material element: conductive plastic;
Manufacturer: sakae, made in Japan;
Effective electrical travel:340 5 ;
Mechanical travel:360 continuous;
Total resistance tolerance: 15%;
Housing size:22.4x10.6mm, Dia x H
Total size: 22.4x36.3mm, Dia x H
Dielectric Strength:1 minute at 500 V.A.C.
Insulation resistance: over 1000 M at 500 V.D.C.;
Expected Rotational Life:10,000,000 cycles;
Temperature coefficient: 400 ppm/ C;
Operating temp range:-55 +105 C;
